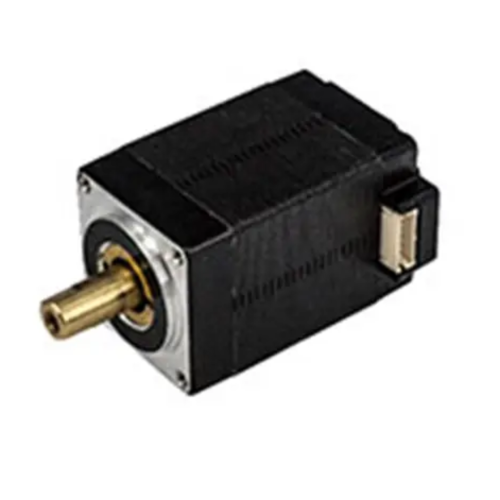

NEMA8 Hollow Shaft Stepper Motor, 20mm Stepper Motor
Hollow Shaft Stepper Motor
$35.00
Step Accuracy: | ±5% | Resistance Accuracy: | ±10% |
---|---|---|---|
Inductance Accuracy: | ±20% | Temperature Rise: | 80°C MAX |
Ambient Temperature Range: | -20°C~ 50°C | Storage Temperature Range: | -30°C~ 60°C |
Insulation Resistance: | 100M Ω MIN. 500V DC | Dielectric Strength: | 500V AC 1min |
Radial Play: | 0.02mm MAX. (450g Load) | End Play: | 0.08mm MAX. (450g Load) |
Max. Radial Force: | 20N | Max. Axial Force: | 2N |
NEMA8 Hollow Shaft Stepper Motor
Electrical Specifications:
Model No. | Step Angle | Motor Length (mm) | Rated voltage (v) | Rated Current (A) | Phase Resistance (Ω) | Phase Indutance (Mh) | Holding Torque(MIN) N.cm | Detent Toruue(MAX) N.cm | Motor Torque (g.cm2) | Lead Wire | Motor Weight (g) |
8HS2028 | 1.8 | 27.2 | 2.55 | 0.5 | 5.1 | 1.5 | 1.4 | 0.2 | 2.5 | 4 | 50 |
8HS2038 | 1.8 | 28.1 | 4.4 | 0.5 | 8.8 | 2.7 | 2.0 | 0.2 | 4.5 | 4 | 70 |
Mechanical Dimensions and Wiring Diagram:
Torque Performance Curve:
Lead Wire Mode Options:
More Information on detail, please feel free to contact me
- Availability: In Stock
- Model: 8hs
- Brand: Adampower
