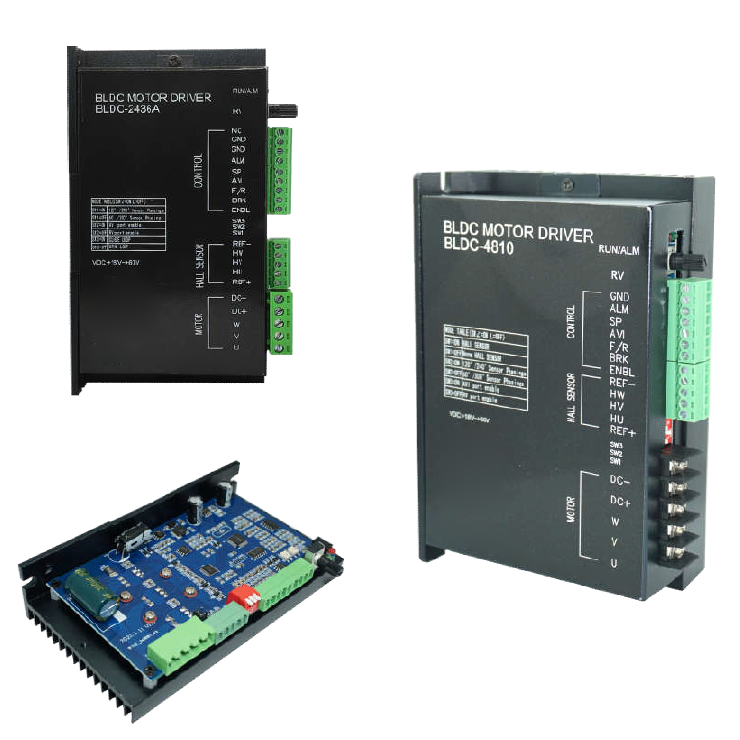

BLDC Motor Driver

300W, 500W, 750W, 1000W, 1500W,BLDC Motor Driver
$200.00
*
Qty:
(This product has a limit set to 10000 item(s) per order)

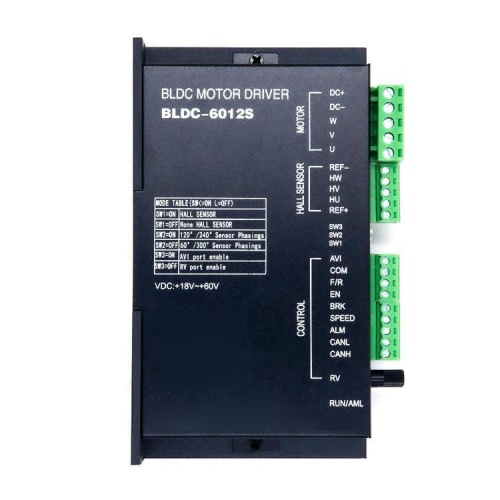

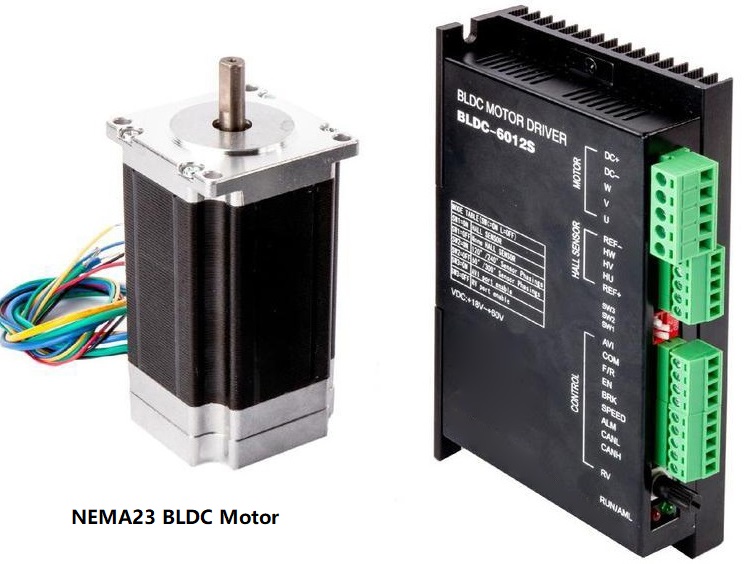

BLDC-6012S is a high-tech product used in the field of low-power motors with communication functions.
With the rapid development of electronic technology, the technology and performance of electronic products
are constantly updated and improved. The product uses super-large hardware integrated circuits, has high
anti-interference and fast response capabilities,  and has the control performance of a traditional DC motor.
Compared with maintenance-free, long life and constant torque advantages.

Features

1. SPWM, Speed/Current alike close loop technology, smooth rotation

2. Smooth torque output within speed range (8000 rpm Max. )

3. 1:75 Max. speed regulation ratio

4. 60°/300°/120°/240°Electrical angle adjustable

5. Speed regulation: potentiometer adjust / Analog input

6. Run/Step、Quick Brake、CW/CCW rotation shift

7. Speed output、Alarm output(O. C. )

8. Over current、over voltage、stall、missing speed Alarm


Technical data

Electrical Parameters(Tj=25ºC)

Power

24~60VDC, capacity: up to motors

Current output

Rated 12A, Peak 36A(≤3s)

Driving mode

SPWM

Insulation Res

>500MΩ

Dielectric Strength

500V/min

Weight

About 300g

Environmental Requirements

Cooling method

Self cool

Environment

Avoid dust, oil mist and corrosive gas

Temperature

0~ 50℃

Humidity

<80% RH, no condensation, no frosting

Shock

5.7m/s2 Max.

Storage temp

-20~ 125°C


Model Number:

Model No.Power Supply VoltageContinuous Output CurrentRated Power
BLDC-6012S24VDC12A300W
BLDC-6012A20VDC15A300W
BLDC-5002024VDC20A500W
BLDC-5001436VDC14A500W
BLDC-5001148VDC11A500W
BLDC-481050VDC15A750W
BLDC-1005024VDC50A1500W
BLDC-1003336VDC33A1500W
BLDC-1002548VDC25A1500W
BLDC-750H220VAC5A1000W



     Model Table:

MODEL TABLE
SW1=ONHALL SENSOR
SW1=OFFNone HALL SENSOR
SW2=ON120°/240° Sensor Phasings
SW2=OFF60°/300° Sensor Phasings
SW3=ONAVI port enable
SW3=OFFRV port enable

   VDC: 18V ~ 80V

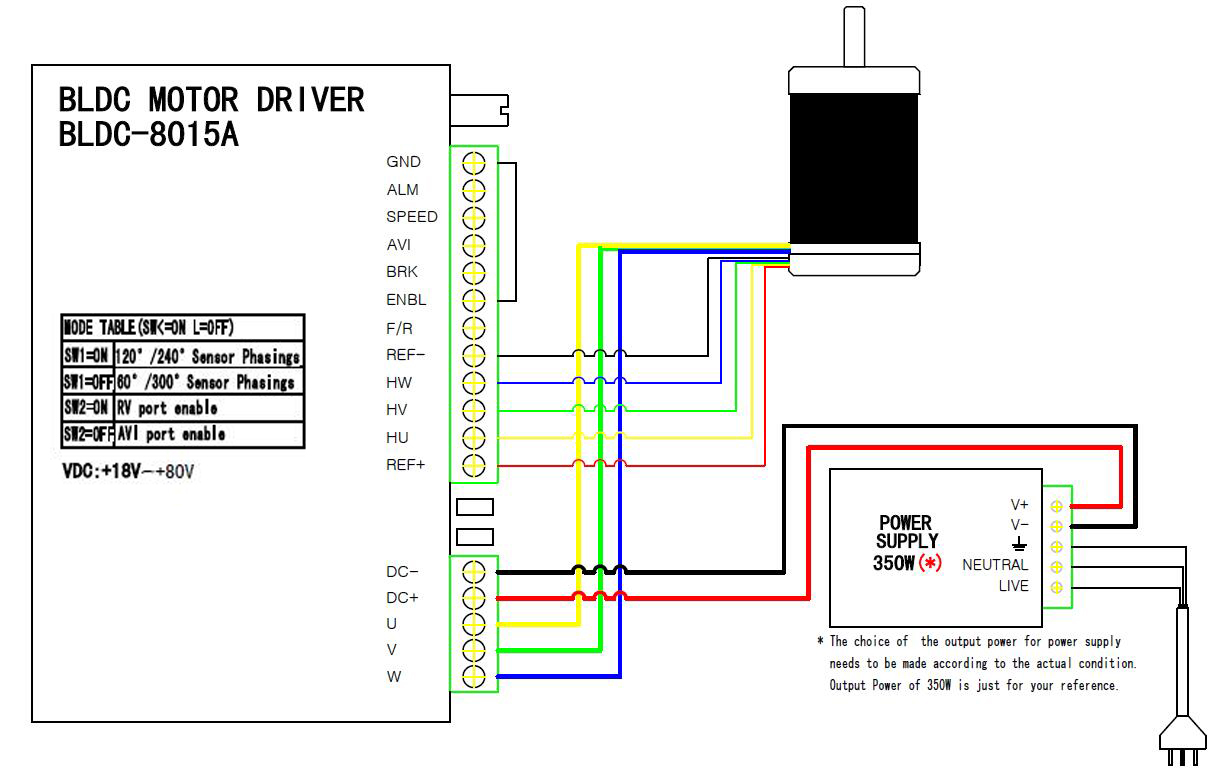

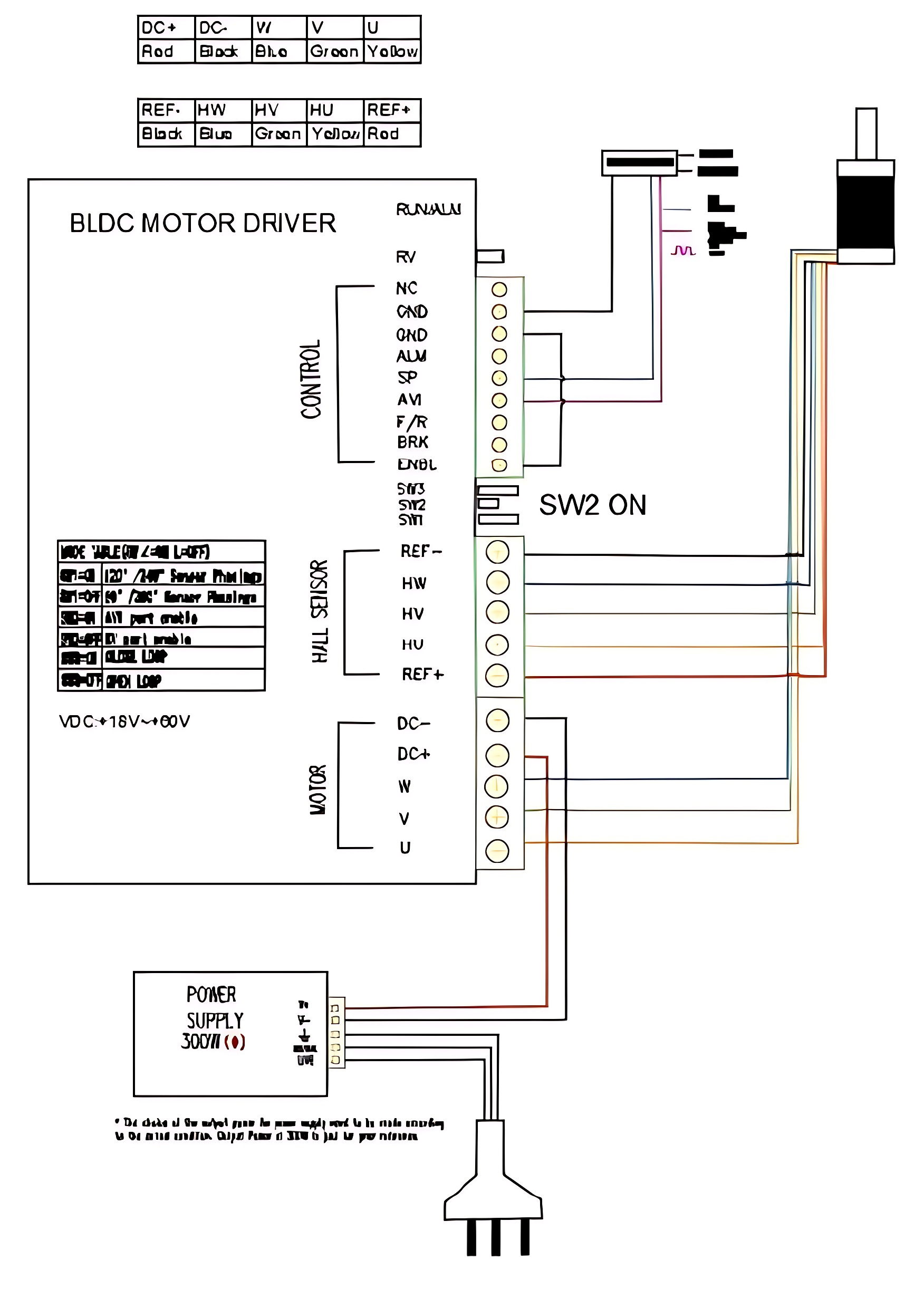

External potentiometer speed governing:

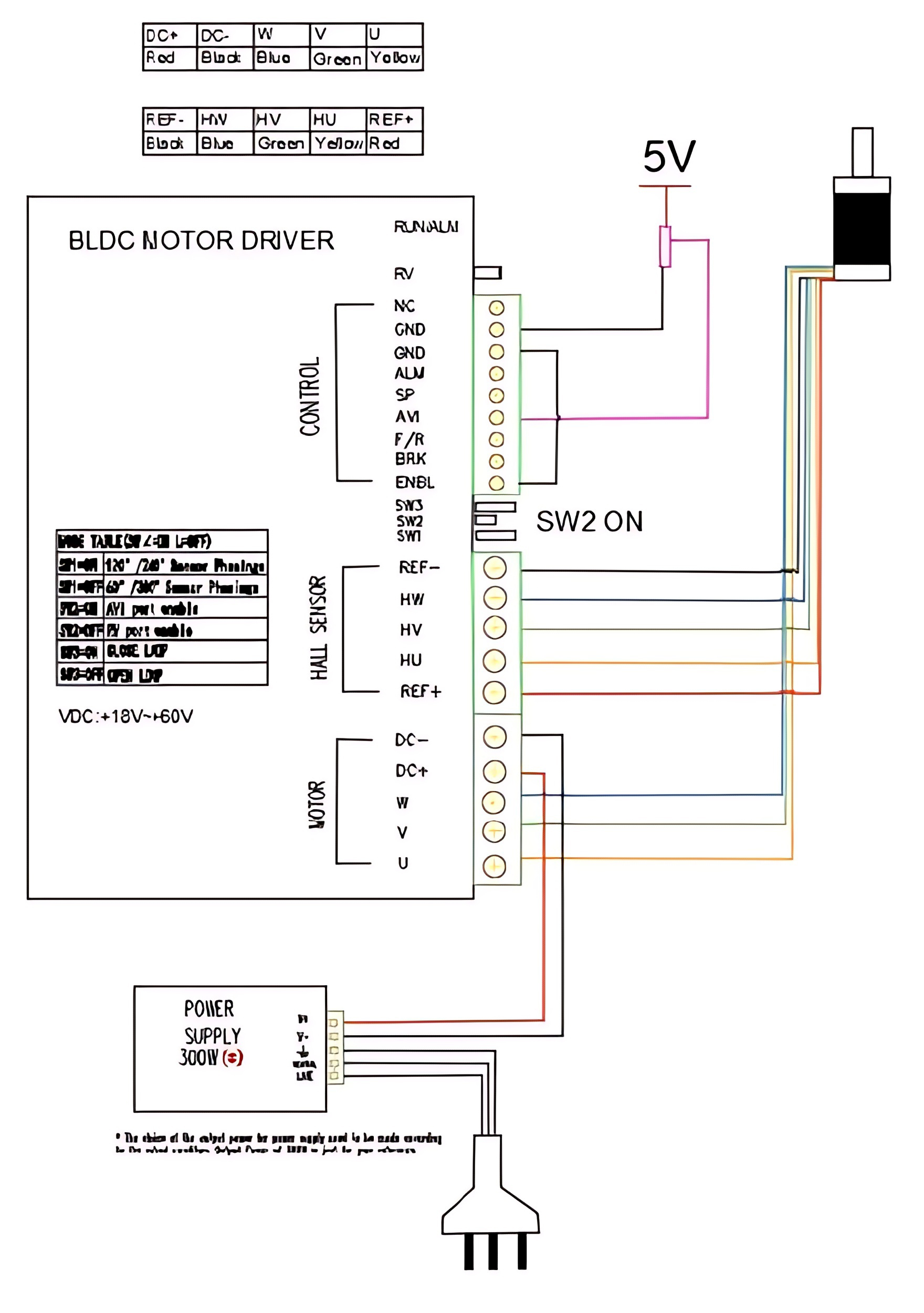

AVI (Analog voltage or PWM frequency) speed governing:

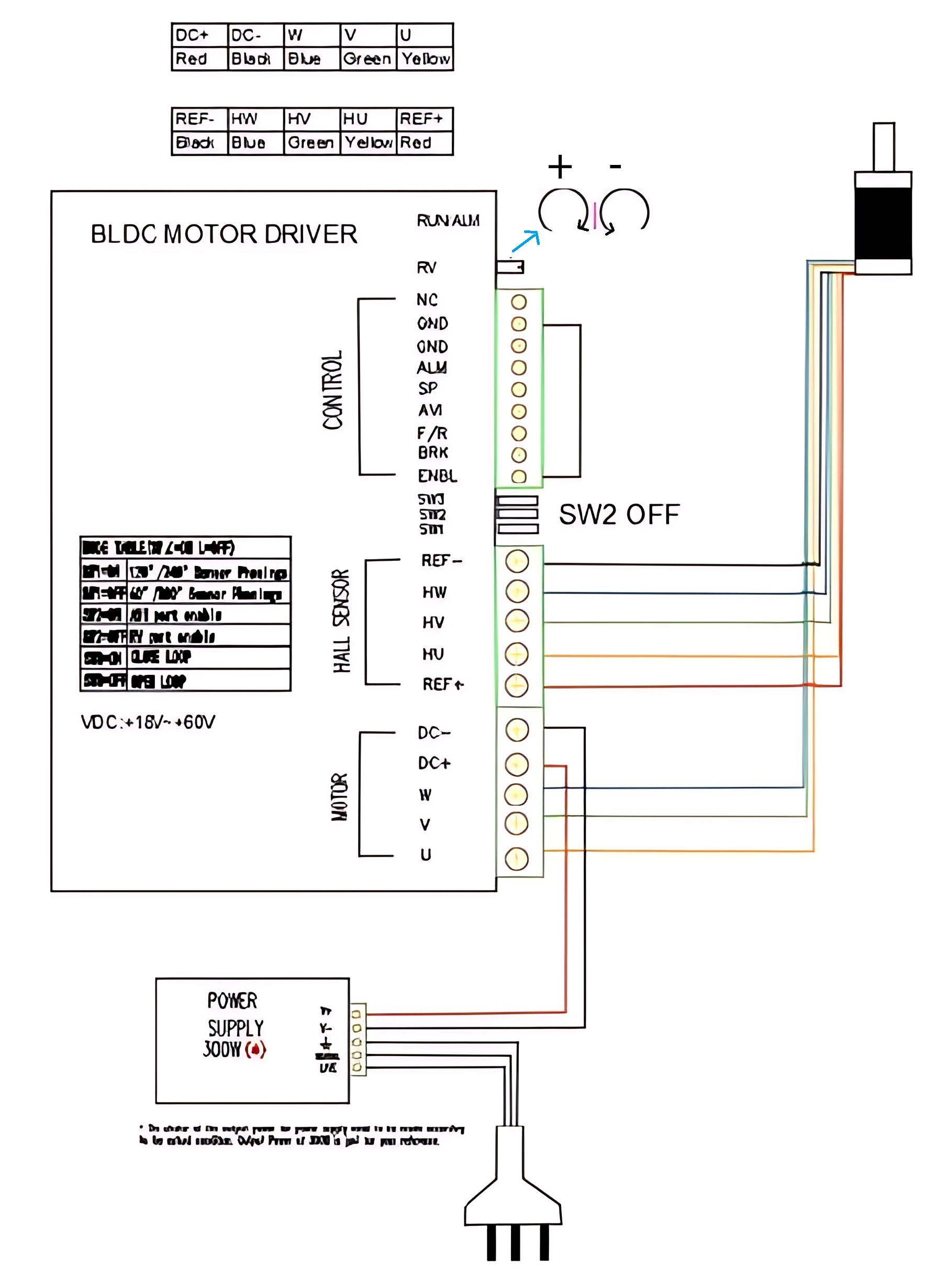

RV speed governing:



More Information on detail, please feel free to contact me

Software Modbus Poll
AdamPower Software
