UC57 CANopen Stepper Motor Controller

CANopen Stepper Motor Controller, It supports the CiA301 and CiA402 sub-protocols
of the CANopen protocol.

UC57 uses the latest 32-bit DSP digital chip and has advanced drive control algorithms and noise
suppression technology to ensure smooth motor operation. Stable, low noise, and temperature controllable.
Users can set any ID address within 1-255 and any current value within 0-8A through the host computer.
Maximum output peak current of the UC42 bus driver is  5.6A.


UC57 can be set to 1-256 subdivisions and adopts built-in micro-subdivision technology, which can achieve
high subdivision effects even under low subdivision conditions, ensuring that the motor operates with uniform
step intervals and no large or small step problems.

3 input signal ports and 2 output signal ports, supporting position, speed, and return-to-origin control modes.
with highest communication rate in 1Mbps.

Input signal Wiring diagram and Output Signal wiring diagram↑

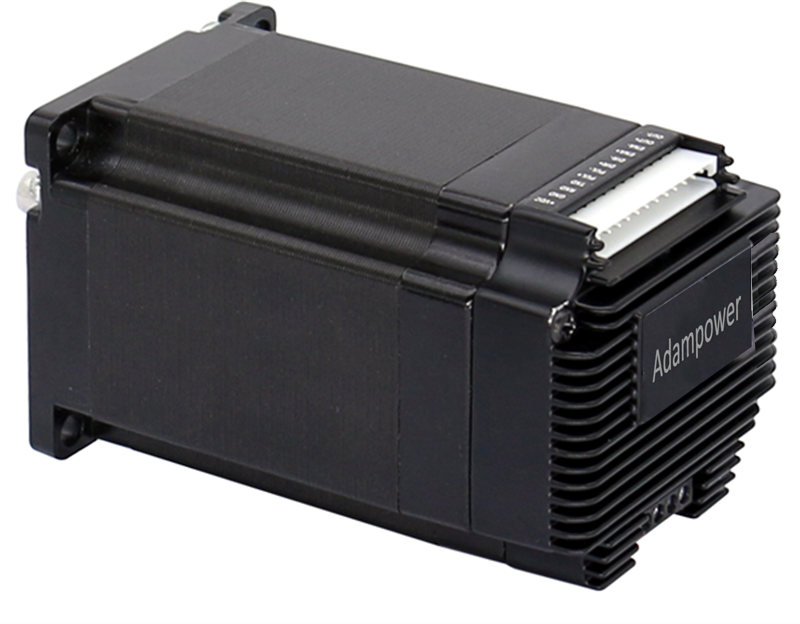

UC57 is designed for NEMA23 stepper motor, we supply NEMA23 integrated stepper motor with 1000 line Magnetic Encoder
And 1000 line ABZ signal Optoelectronic encoder:
Holding Torque: 1.0, 2.0,  3.0Nm

If just choose UC23 stepper motor controller with requirement for low vibration, please inform us for
setting parameters before sale.

Model No.	Holding Torqure(Nm)	Motor Length(mm)	overall length(mm)	Encoder
UC5710IEC	1.0	56	75	1000 line Magnetic Encoder
UC5720IEC	2.0	76	95
UC5730IEC	3.0	90	109
UC5710IEP	1.0	56	90	1000 line ABZ Optoelectronic encoder
UC5720IEP	2.0	76	105
UC5730IEP	3.0	90	124

Port Definition

It can be connected to PLC, industrial computer, controller and other host computers with only two
communication lines. Through the built-in motion Control instructions can realize a network of up to
100-axis stepper motors.
especially suitable for long-distance multi-axis applications, which can reduce wiring and enhance
the reliability of drive operation.

Mainly used in electronic equipment, semiconductors, medical instruments, environmental protection equipment,
automatic detection equipment, small automatic processing equipment and other automation equipment with
multiple motor shaft applications and compact requirements for equipment space
