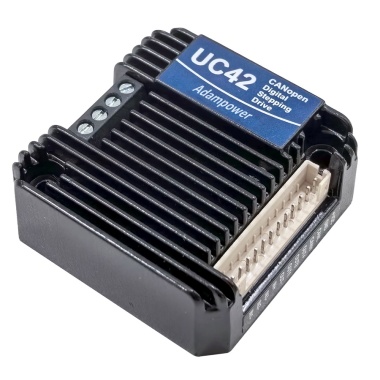

UC42 CANopen Stepper Motor Controller

CANopen Stepper Motor Controller, It supports the CiA301 and CiA402 sub-protocols
of the CANopen protocol.

UC42 uses the latest 32-bit DSP digital chip and has advanced drive control algorithms and noise
suppression technology to ensure smooth motor operation. Stable, low noise, and temperature controllable.
Users can set any ID address within 1-255 and any current value within 0-8A through the host computer.
Maximum output peak current of the UC42 bus driver is 2.5A.


UC42 can be set to 1-256 subdivisions and adopts built-in micro-subdivision technology, which can achieve
high subdivision effects even under low subdivision conditions, ensuring that the motor operates with uniform
step intervals and no large or small step problems.

3 input signal ports and 2 output signal ports, supporting position, speed, and return-to-origin control modes.
with highest communication rate in 1Mbps.

Input signal Wiring diagram and Output Signal wiring diagram↑

UC42 is designed for NEMA17 stepper motor, we supply NEMA17 integrated stepper motor with
torque 0.35, 0.50 and 0.7Nm:

if just choose UC42 stepper motor controller with requirement for low vibration, please inform us for
setting parameters before sale.

Model No.	Holding Torqure(Nm)	Motor Length(mm)
UC42-03	0.35	40
UC42-05	0.50	48
UC42-07	0.70	60

Port Definition

It can be connected to PLC, industrial computer, controller and other host computers with only two
communication lines. Through the built-in motion Control instructions can realize a network of up to
100-axis stepper motors.
especially suitable for long-distance multi-axis applications, which can reduce wiring and enhance
the reliability of drive operation.

Mainly used in electronic equipment, semiconductors, medical instruments, environmental protection equipment,
automatic detection equipment, small automatic processing equipment and other automation equipment with
multiple motor shaft applications and compact requirements for equipment space

UC42 CANopen Stepper Motor Controller User Manual
CANOpen Software
More Information on detail, please feel free to contact me

• Model: UC42
• Brand: Adampower
