Nema 11 (28mm) linear actuator, linear module
NEMA 11 Linear Slider
Size:
NEMA8, NEMA11, NEMA14, NEMA17, NEMA23, NEMA23, NEMA34
20mm, 28mm, 35mm, 42mm, 57mm, 60mm, 86mm
Stepper
0.001524mm~0.16mm
Performance
Maximum thrust up to 240kg, low temperature rise, low vibration, low noise,
long life (up to 5 million cycles), and high positioning accuracy (up to ±0.005 mm)
Application
Medical diagnostic equipment, life science instruments, robots, optical equipment,
analytical instruments, semiconductor equipment, communication equipment, automation equipment
NEMA11 Lead Screw Linear Actuators
Linear Module, Linear Slider
| Motor Type | Bipolar stepper |
| Step Angle | 1.8° |
| Voltage (V) | 2.1 / 3.7 |
| Current (A) | 1 |
| Resistance (Ohms) | 2.1 / 3.7 |
| Inductance (mH) | 1.5 / 2.3 |
| Lead Wires | 4 |
| Motor Length (mm) | 34 / 45 |
| Stroke (mm) | 30 / 60 / 90 |
| Ambient Temperature | -20℃ ~ 50℃ |
| Temperature Rise | 80K Max. |
| Dielectric Strength | 1mA Max. @ 500V, 1KHz, 1Sec. |
| Insulation Resistance | 100MΩ Min. @500Vdc |
Motor Characteristics:
Motor Size | Voltage/ Phase (V) | Current/ Phase (A) | Resistance/ Phase (Ω) | Inductance/ Phase (mH) | Number of Lead Wires | Rotor Inertia (g.cm2) | Motor Weight (g) | Motor Length L (mm) |
28 | 2.1 | 1 | 2.1 | 1.5 | 4 | 9 | 120 | 34 |
28 | 3.7 | 1 | 3.7 | 2.3 | 4 | 13 | 180 | 45 |
Available Lead Screw and Travel per Step:
Diameter(mm) | Lead(mm) | Step(mm) | Power off self-locking force(N) |
4.76 | 0.635 | 0.003175 | 100 |
4.76 | 1.27 | 0.00635 | 40 |
4.76 | 2.54 | 0.0127 | 10 |
4.76 | 5.08 | 0.0254 | 1 |
4.76 | 10.16 | 0.0508 | 0 |

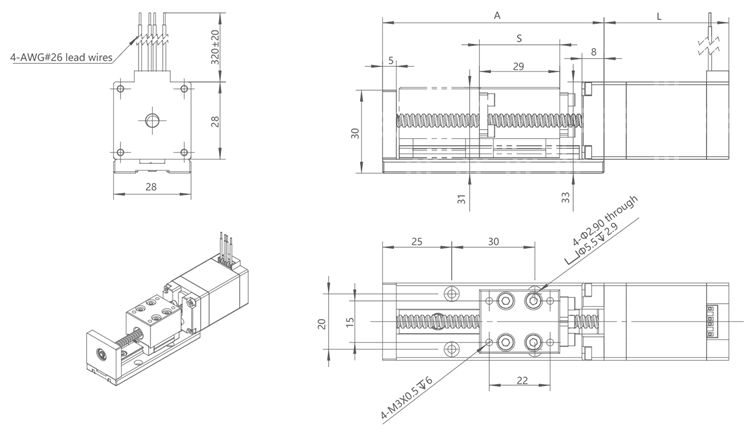

NEMA11 Linear Actuator outline drawing:
Stroke S (mm) | 30 | 60 | 90 |
Dimension A (mm) | 80 | 110 | 140 |
More Information on detail, please feel free to contact me
- Availability: In Stock
- Model: 28ME
- Brand: Adampower
