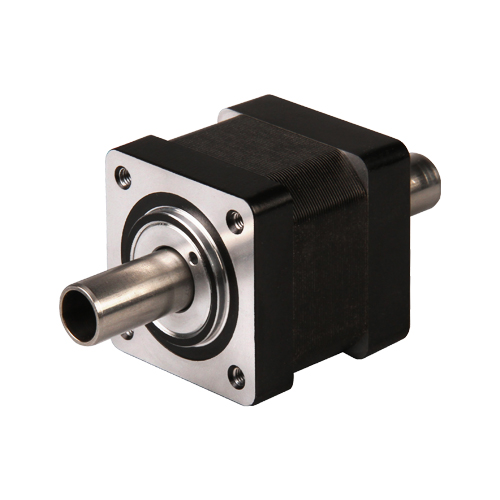

NEMA14 Hollow Shaft Stepper Motor

Hollow Shaft Stepper Motor
$36.00
Qty:
(This product has a limit set to 50000 item(s) per order)
Add to Cart Buy Now
Print



Step Accuracy:±5%Resistance Accuracy:±10%
Inductance Accuracy:±20%Temperature Rise:80°C MAX
Ambient Temperature Range: -20°C~ 50°CStorage Temperature Range: -30°C~ 60°C
Insulation Resistance:100M Ω MIN. 500V DCDielectric Strength:500V AC 1min
Radial Play:0.02mm MAX. (450g Load)End Play:0.08mm MAX. (450g Load)
Max. Radial Force:20NMax. Axial Force:2N

NEMA14 Hollow Shaft Stepper Motor

Electrical Specifications:

Model No.

Step

 Angle

Motor

Length

(mm)

Rated
 voltage
(v)		Rated
  Current
(A)		Phase
Resistance
(Ω)		Phase
 Indutance
(Mh)		Holding
Torque(MIN)
N.cm		Detent
Toruue(MAX)
N.cm		Lead
 Wire
14HS20331.833.63.51.03.53.6190.84
14HS20451.845.66.01.06.07.2361.34

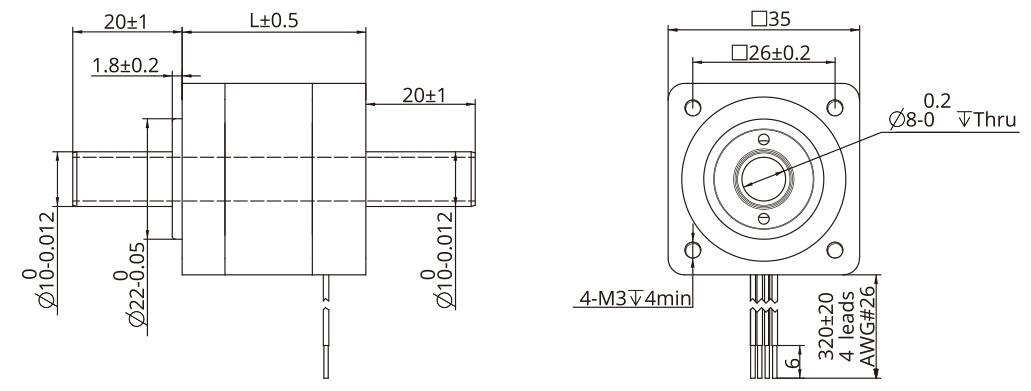

 Mechanical Dimensions and Wiring Diagram:

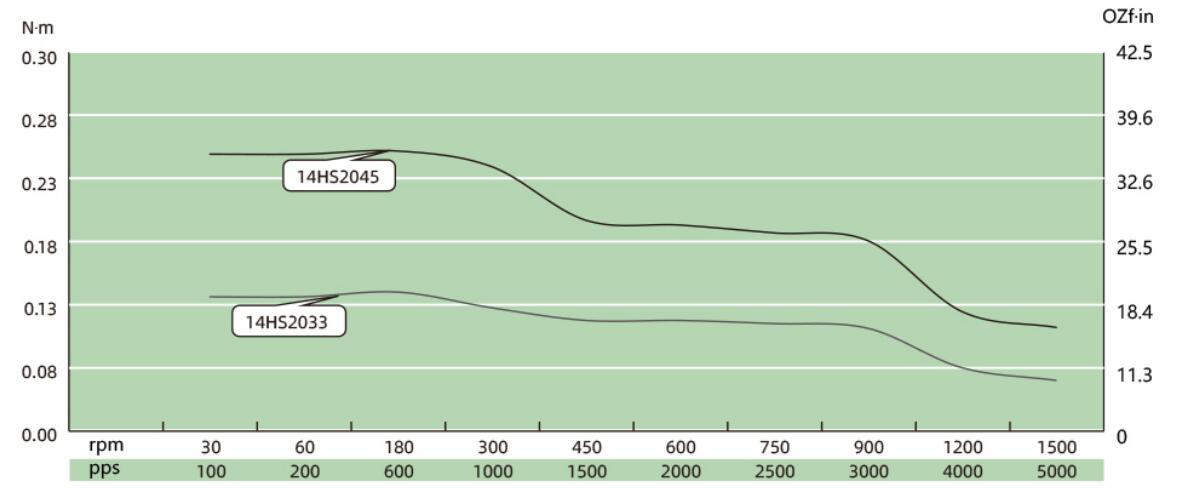

Torque Performance Curve:


Lead Wire Mode Options:


More Information on detail, please feel free to contact me
