Nema 14 (35mm) linear actuator, linear module
NEMA 14 Linear SliderSize:
NEMA8, NEMA11, NEMA14, NEMA17, NEMA23, NEMA23, NEMA34
20mm, 28mm, 35mm, 42mm, 57mm, 60mm, 86mm
Stepper
0.001524mm~0.16mm
Performance
Maximum thrust up to 240kg, low temperature rise, low vibration, low noise,
long life (up to 5 million cycles), and high positioning accuracy (up to ±0.005 mm)
Application
Medical diagnostic equipment, life science instruments, robots, optical equipment,
analytical instruments, semiconductor equipment, communication equipment, automation equipment
NEMA14 Lead Screw Linear Actuators
Linear Module, Linear Slider
Motor Type | Bipolar stepper |
Step Angle | 1.8° |
Voltage (V) | 1.4 / 2.9 |
Current (A) | 1.5 |
Resistance (Ohms) | 0.95 / 1.9 |
Inductance (mH) | 1.4 / 3.2 |
Lead Wires | 4 |
Motor Length (mm) | 34 / 47 |
Stroke (mm) | 30 / 60 / 90 |
Ambient Temperature | -20℃ ~ 50℃ |
Temperature Rise | 80K Max. |
Dielectric Strength | 1mA Max. @ 500V, 1KHz, 1Sec. |
Insulation Resistance | 100MΩ Min. @500Vdc |
Motor Characteristics:
Motor Size | Voltage/ Phase (V) | Current/ Phase (A) | Resistance/ Phase (Ω) | Inductance/ Phase (mH) | Number of Lead Wires | Rotor Inertia (g.cm2) | Motor Weight (g) | Motor Length L (mm) |
35 | 1.4 | 1.5 | 0.95 | 1.4 | 4 | 20 | 190 | 34 |
35 | 2.9 | 1.5 | 1.9 | 3.2 | 4 | 30 | 230 | 47 |
Available Lead Screw and Travel per Step:
Diameter (mm) | Lead (mm) | Step (mm) | Power off self-locking force (N) |
6.35 | 1.27 | 0.00635 | 150 |
6.35 | 3.175 | 0.015875 | 40 |
6.35 | 6.35 | 0.03175 | 15 |
6.35 | 12.7 | 0.0635 | 3 |
6.35 | 25.4 | 0.127 | 0 |

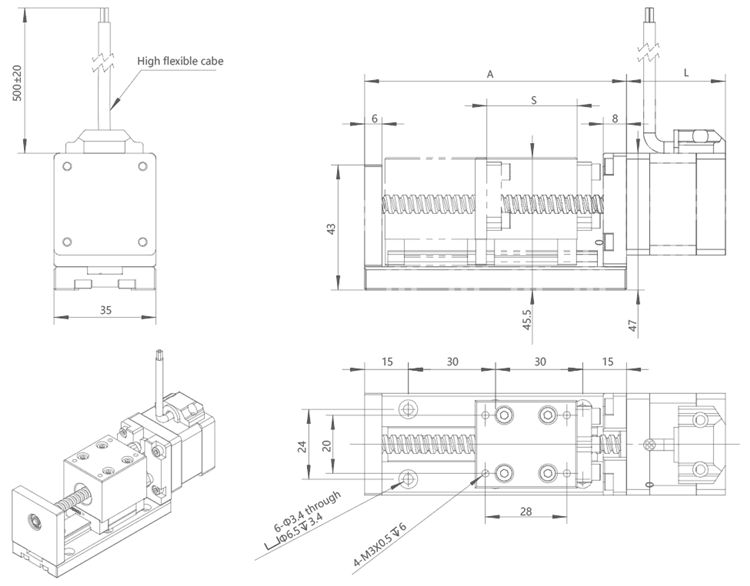

NEMA14 Linear Actuator outline drawing:
Stroke S (mm) | 30 | 60 | 90 |
Dimension A (mm) | 90 | 120 | 150 |
More Information on detail, please feel free to contact me
- Availability: In Stock
- Model: 35ME
- Brand: Adampower
