NEMA14 Stepper Ball Screw Linear Actuators
Ball Screw Linear Actuators
$55.00

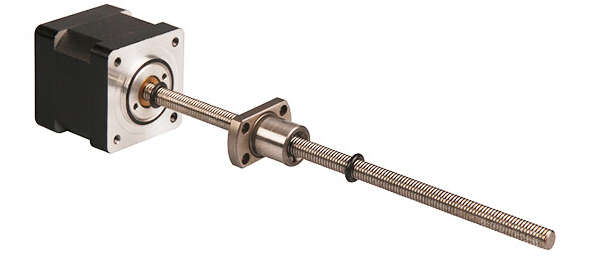

NEMA14 Stepper Ball Screw Linear Actuators
These actuators are external types have 5 different sizes, from 20mm to 57mm. From 0.005mm/
step to 0.1mm/step, variety of resolution for options available. Maximum thrust can reach 1600N.
Encoder option is available for whole Series
Motor size | NEMA8 | NEMA11 | NEMA14 | NEMA17 | NEMA23 | ||||
Dia. Lead | Φ4 | Φ5 | Φ6 | Φ6 | Φ8 | Φ6 | Φ8 | Φ10 | Φ12 |
1.0 mm | * | * | * | * | * | * | |||
2.0 mm | * | * | * | * | * | * | * | * | |
2.5 mm | * | * | |||||||
4.0 mm | * | * | |||||||
5.0 mm | * | * | * | ||||||
6.0 mm | * | * | * | ||||||
8.0 mm | * | * | |||||||
10.0 mm | * | * | * | * | * | * | * | ||
12.0 mm | * | * | |||||||
15.0 mm | * | ||||||||
20.0 mm | * |

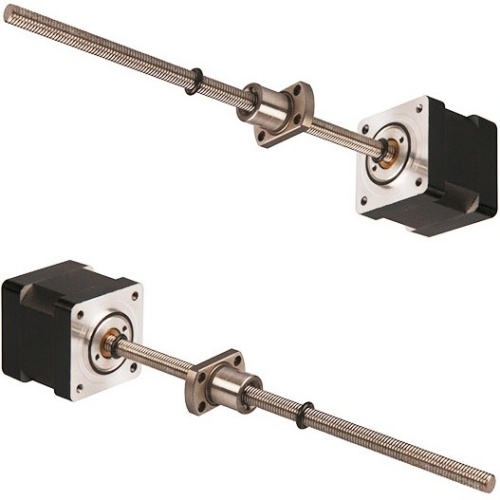

NEMA14 Stepper Ball Screw Linear Actuators
Motor Characteristics:
Motor Code | Voltage (V) | Current (A) | Resistance (Ω) | Inductance (mH) | Lead Wire No | Length (mm) |
14E2105 | 6.6 | 0.5 | 13.2 | 14 | 4 | 33.6 |
14E2110 | 3.5 | 1.0 | 3.5 | 3.6 | 4 | 33.6 |
14E2115 | 2.7 | 1.5 | 1.8 | 1.9 | 4 | 45.6 |
14E2205 | 12 | 0.5 | 24 | 29 | 4 | 45.6 |
14E2210 | 6 | 1.0 | 6 | 7.2 | 4 | 45.6 |
14E2215 | 4 | 1.5 | 2.7 | 3.2 | 4 | 45.6 |

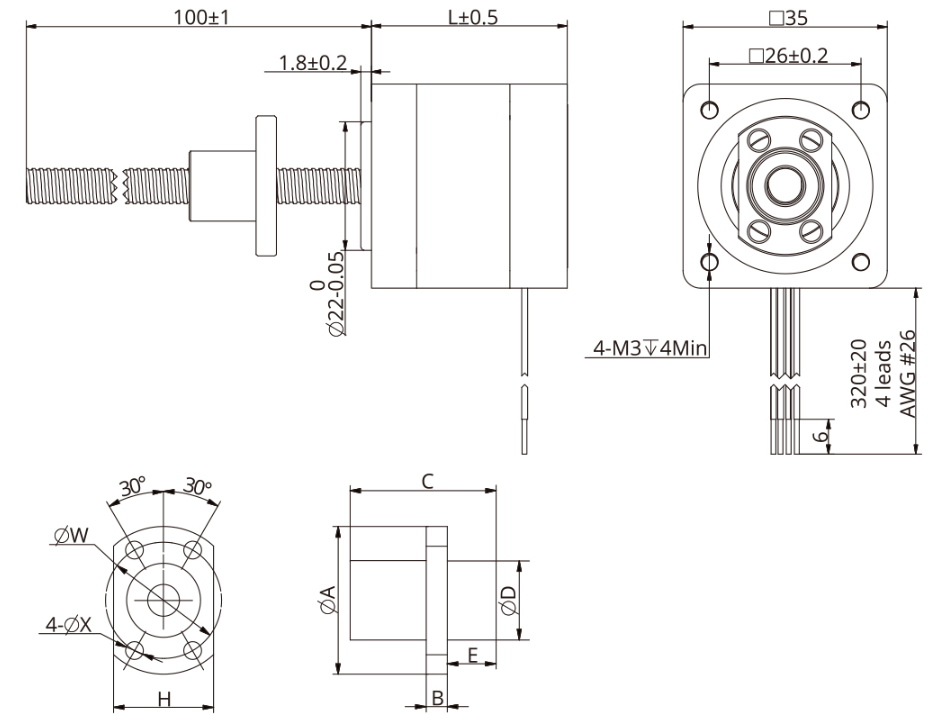

Dimensional drawings:
Ball Screw Specifications:
Ball screw type | 0601 | 0602 | 0606 | 0610 | 0801 | 0802 | 0802.5 | 0805 | 0808 | 0810 | 0812 |
---|---|---|---|---|---|---|---|---|---|---|---|
Ball Size | Ф0.8 | Ф0.8 | Ф0.8 | Ф1.2 | Ф0.8 | Ф1.5875 | Ф1.5875 | Ф1.5875 | Ф1.5875 | Ф1.5875 | Ф1.5875 |
Number of thread | 1 | 1 | 2 | 2 | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
Thread direction | Right | ||||||||||
Shaft root dia. | Ф5.3 | Ф5.1 | Ф5.2 | Ф5.0 | Ф7.3 | Ф6.6 | Ф6.3 | Ф6.6 | Ф6.7 | Ф6.7 | Ф6.7 |
Number of circuit | 3.7×1 | 2.7×1 | 1.6×2 | 1.2×2 | 3.7×1 | 3.7×1 | 2.7×1 | 2.7×1 | 1.6×2 | 1.6×2 | 1.6×2 |
Shaft, nut material | SCM415H | ||||||||||
Surface hardness | HRC58~62 | ||||||||||
Anti-rust treatment | Anti-rust oil | ||||||||||
Grade | C7 |
Nut size | A | B | C | D | H | W | X | E | Position accuracy | Total run out | Axial play | Dynamic load[N] | Static load[N] |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BS0601 | 26 | 4 | 17 | 13 | 16 | 20 | 3.4 | ±0.05 | 0.12 | ≤0.03 | 680 | 1200 | |
BS0602 | 28 | 4 | 17 | 15 | 19 | 22 | 3.4 | ±0.05 | 0.12 | ≤0.03 | 750 | 1450 | |
BS0606 | 27 | 4 | 17 | 14 | 16 | 21 | 3.4 | 5 | ±0.05 | 0.12 | ≤0.03 | 870 | 1600 |
BS0610 | 27 | 4 | 23 | 14 | 16 | 21 | 3.4 | 7.5 | ±0.05 | 0.12 | ≤0.03 | 950 | 1650 |
BS0801 | 29 | 4 | 17 | 16 | 18 | 23 | 3.4 | ±0.05 | 0.12 | ≤0.03 | 780 | 1650 | |
BS0802 | 37 | 5 | 24 | 20 | 22 | 29 | 4.5 | ±0.05 | 0.12 | ≤0.03 | 2400 | 4100 | |
BS0802.5 | 29 | 4 | 16 | 16 | 18 | 23 | 3.4 | ±0.05 | 0.12 | ≤0.03 | 1850 | 3000 | |
BS0805 | 31 | 4 | 28 | 18 | 20 | 25 | 3.4 | ±0.05 | 0.12 | ≤0.03 | 1850 | 3000 | |
BS0808 | 31 | 4 | 20 | 18 | 20 | 25 | 3.4 | 6 | ±0.05 | 0.12 | ≤0.03 | 2200 | 3800 |
BS0810 | 31 | 4 | 20 | 18 | 20 | 25 | 3.4 | 7 | ±0.05 | 0.12 | ≤0.03 | 2200 | 3800 |
BS0812 | 31 | 4 | 24 | 18 | 20 | 25 | 3.4 | 6 | ±0.05 | 0.12 | ≤0.03 | 2200 | 3800 |
* The unit of Position accuracy, Total run out and Axial play is [mm].

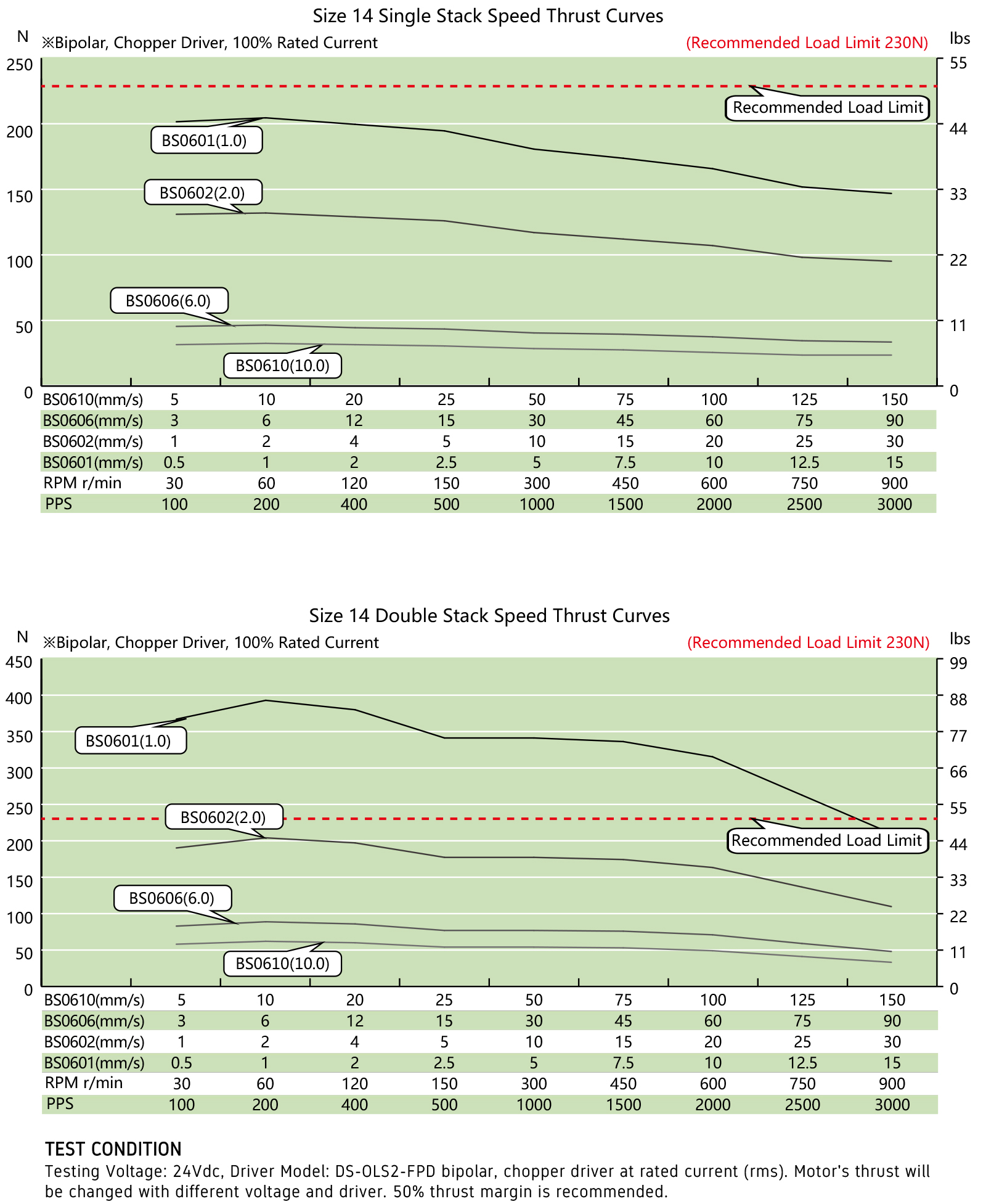

NEMA 14 Ball Screw Liner Stepper Motor Performance Curves:
Options for screw end machining:
More Information on detail, please feel free to contact me
- Availability: In Stock
- Model: 14bs
- Brand: Adampower
