NEMA14 Stepper Lead Screw Linear Actuators

The NEMA 6 is our smallest hybrid linear actuators.

This compact unit can be integrated into various

Applications to provide precise linear positioning while

occupying less than 1 in2 of mounting footprint and
providing up to 44.5N of continuous thrust.

The Working Type for the Different Application Demand:

E: External Linear

N: Non-captive

C: Captive

K: Kaptive

Motor Characteristics:

Motor	Voltage[V]	Current[A]	Resistance[Ω]	Inductance[mH]	Weight[g]	Lead Wire No.	Motor Length[mm]
14-2105	6.6	0.5	13.2	14	189	4	33.6
14-2110	3.5	1	3.5	3.6	189	4	33.6
14-2115	2.7	1.5	1.8	1.9	189	4	33.6
14-2205	12	0.5	24	29	210	4	45.6
14-2210	6	1	6	7.2	210	4	45.6
14-2215	4	1.5	2.7	3.2	210	4	45.6

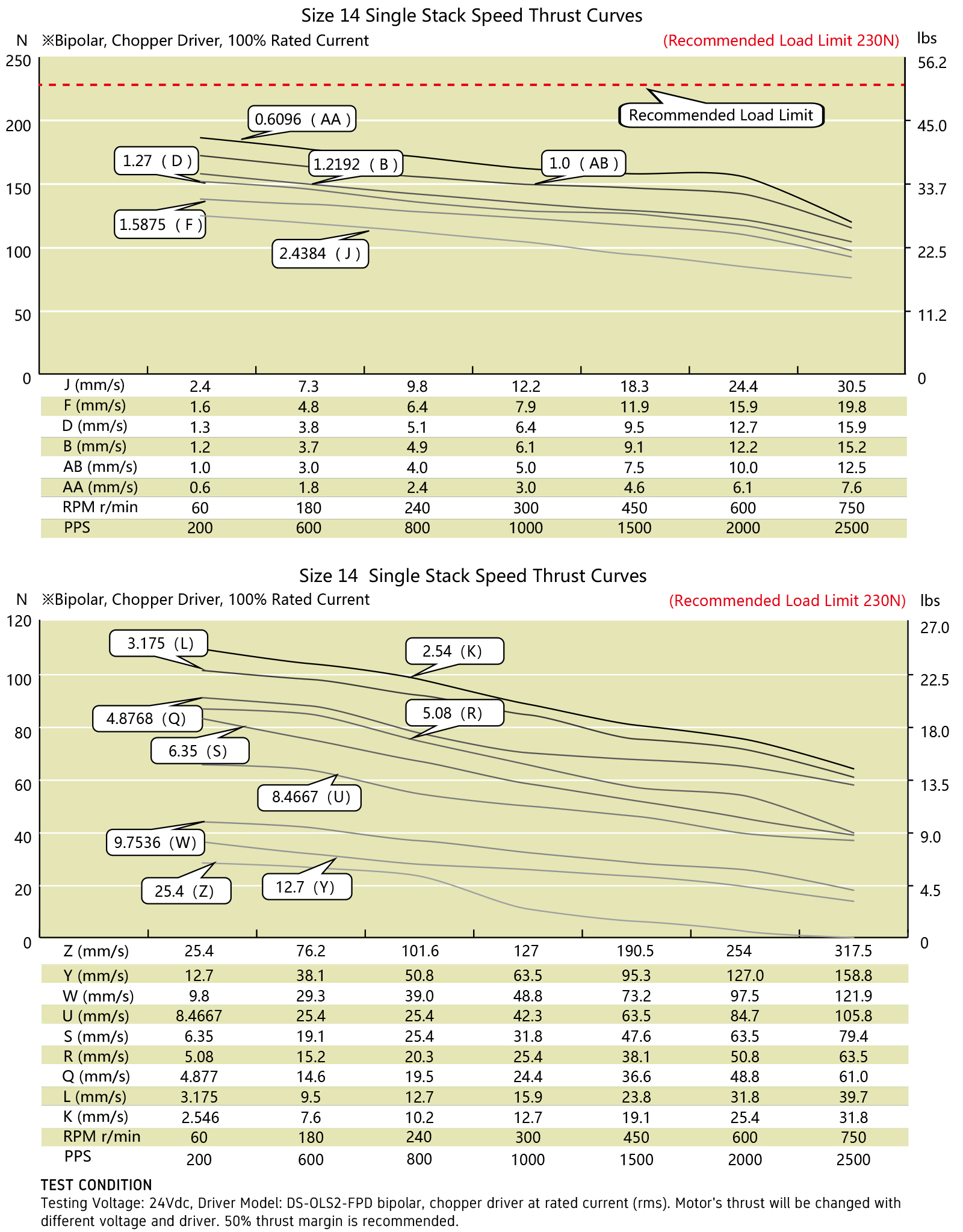

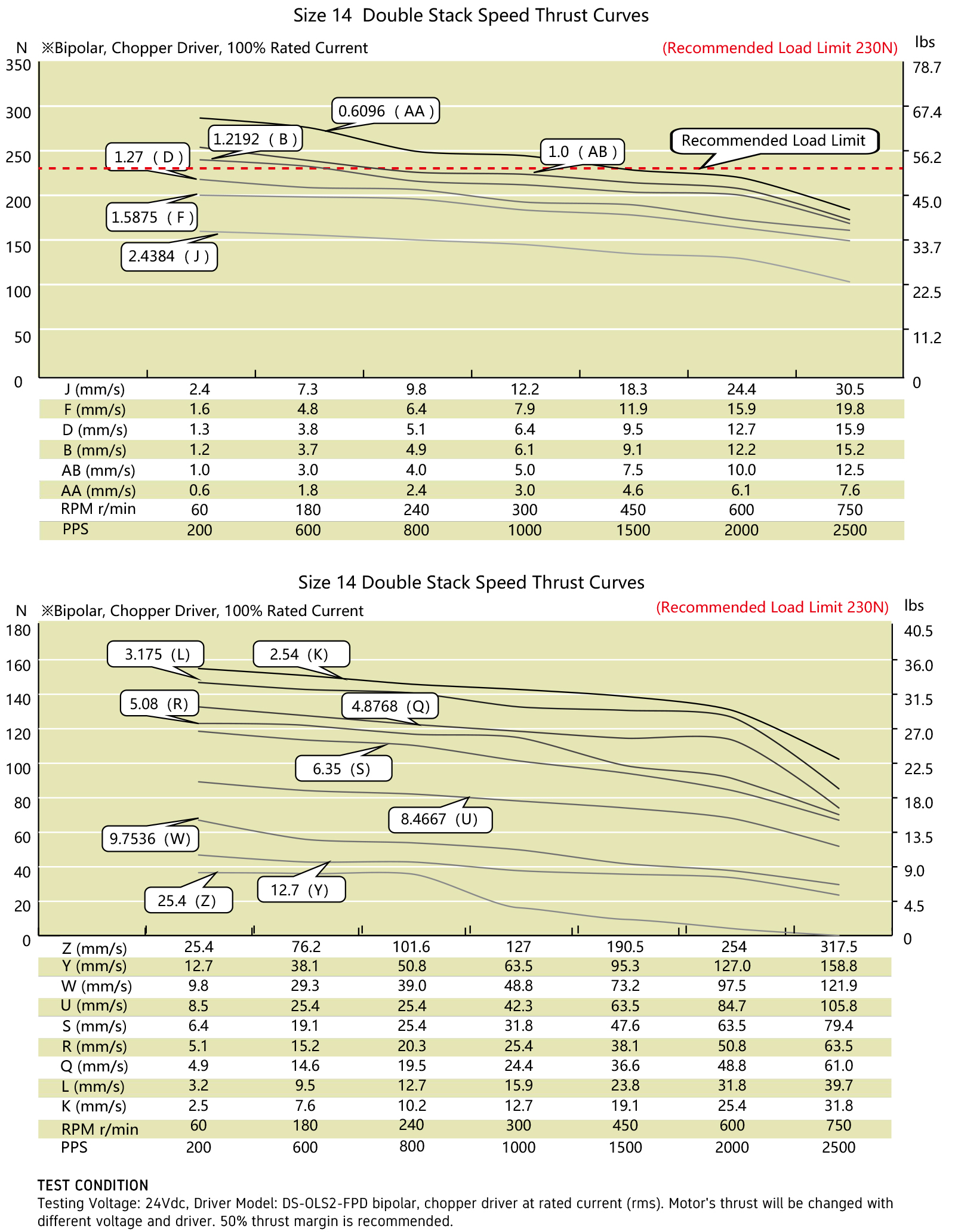

Available Lead Screw and Travel per Step:

Screw Dia.[inch]	Screw Dia.[mm]	Lead[inch]	Lead[mm]	Lead Code	Travel Per Step @ 1.8° [mm]*	Travel Per Step @ 0.9° [mm]*
0.25	6.35	0.024	0.6096	AA	0.003	0.0015
0.25	6.35	0.0394	1	AB	0.005	0.0025
0.25	6.35	0.048	1.2192	B	0.006	0.003
0.25	6.35	0.05	1.27	D	0.0064	0.0032
0.25	6.35	0.0625	1.5875	F	0.0079	0.004
0.25	6.35	0.096	2.4384	J	0.0122	0.0061
0.25	6.35	0.1	2.54	K*	0.0127	0.0064
0.25	6.35	0.125	3.175	L*	0.0159	0.0079
0.25	6.35	0.192	4.8768	Q	0.024	0.0122
0.375	6.35	0.2	5.08	R*	0.0254	0.0127
0.25	6.35	0.25	6.35	S*	0.0318	0.0159
0.25	6.35	0.3333	8.4667	U	0.0423	0.0212
0.25	6.35	0.384	9.7536	W*	0.0488	0.0244
0.25	6.35	0.5	12.7	Y*	0.0635	0.0318
0.25	6.35	1.0	25.4	Z*	0.127	0.0635
0.31	8	0.1575	4	M	0.02	0.01
0.31	8	0.315	8	T	0.04	0.02
0.31	8	0.0787	2	G	0.01	0.005

NEMA 14 Stepper Lead Screw Linear Actuators (External Type):

NEMA 14 Stepper Lead Screw Linear Actuators (Non-Captive Type):

NEMA 14 Stepper Lead Screw Linear Actuators (Captive Type):

Stroke Specification of Captive Actuactor:

Size A (mm)	Stroke B (mm)	L (mm)
35.70	12.70	Single Stack Motor 34.1	Double Stack Motor 48.1
42.05	19.05
48.40	25.40
54.80	31.80
61.10	38.10
73.80	50.80
86.50	63.5

NEMA 14 Stepper Lead Screw Linear Actuators (Kaptive Type):

Stroke Specification of Kaptive Actuactor:

Size A (mm)	Stroke B (mm)	C (mm)
Size A (mm)	Stroke B (mm)	L=34.1	L=48.1
18.70	12.70	4.30	1.30
25.05	19.05	10.65	7.65
31.40	25.40	17.00	14.00
37.75	31.75	23.35	20.35
44.10	38.10	29.70	26.70
56.80	50.80	42.40	39.40
69.50	63.50	55.10	52.10
