Step Accuracy: | ±5% | Resistance Accuracy: | ±10% |
---|---|---|---|
Inductance Accuracy: | ±20% | Temperature Rise: | 80°C MAX |
Ambient Temperature Range: | -20°C~ 50°C | Storage Temperature Range: | -30°C~ 60°C |
Insulation Resistance: | 100M Ω MIN. 500V DC | Dielectric Strength: | 500V AC 1min |
Radial Play: | 0.02mm MAX. (450g Load) | End Play: | 0.08mm MAX. (450g Load) |
Max. Radial Force: | 20N | Max. Axial Force: | 2N |

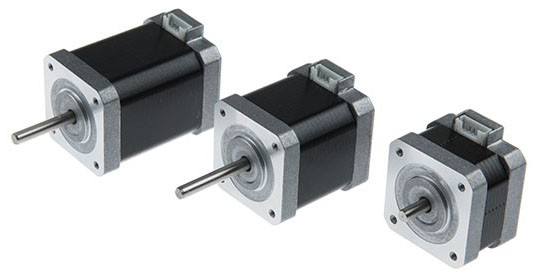

NEMA14 Stepper Motor, 1.8° step angle stepper motor
Electrical Specifications:
Mode No. | Step Angle | Motor Length mm | Rated Voltage v | Rated Current A | Phase Resistance Ω | Phase Indutance Mh | Holding Torque(MIN) N.cm | Detent Torque(MAX) N.cm | Rotor Torque g.cm2 | Lead Wire | Motor Weight g |
14HS1404 | 1.8 | 20 | 10.8 | 0.4 | 27 | 17 | 6.5 | 0.5 | 8 | 4 | 100 |
14HS1604 | 1.8 | 20 | 11.3 | 0.45 | 25 | 9 | 5 | 0.5 | 8 | 6 | 100 |
14HS1407 | 1.8 | 20 | 6.57 | 0.73 | 9 | 4 | 6 | 0.5 | 8 | 4 | 100 |
14HS2604 | 1.8 | 28 | 12 | 0.4 | 30 | 11 | 9 | 0.8 | 11 | 6 | 120 |
14HS2405 | 1.8 | 28 | 10 | 0.5 | 20 | 14 | 10 | 0.8 | 11 | 4 | 140 |
14HS2406 | 1.8 | 28 | 4 | 0.8 | 5 | 5 | 12 | 0.8 | 11 | 4 | 120 |
14HS3604 | 1.8 | 33 | 12 | 0.4 | 30 | 22 | 12 | 1 | 13 | 6 | 160 |
14HS3605 | 1.8 | 33 | 11 | 0.5 | 22 | 12 | 10 | 1 | 13 | 6 | 170 |
14HS3408 | 1.8 | 33 | 5.2 | 0.8 | 6.5 | 9.8 | 18 | 1 | 13 | 4 | 160 |

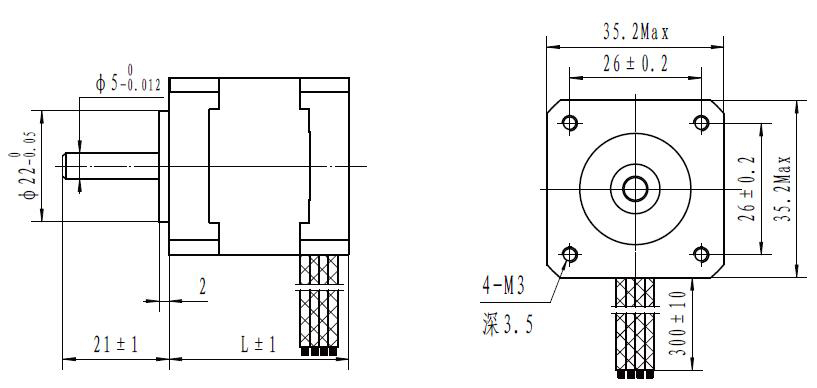

Mechanical Dimensions and Wiring Diagram:
Lead Wire Mode Options:
Shaft Mode can be customized as the requirement.
More Information on detail, please feel free to contact me
- Availability: In Stock
- Model: HS14
- Brand: Adampower
