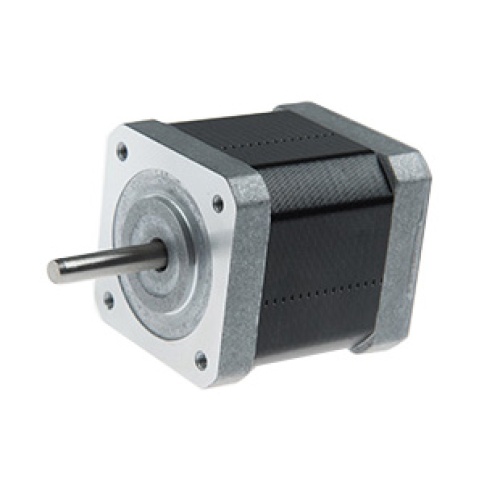

NEMA16 Stepper Motor, 39mm Stepper Motor

2 phase hybrid stepper motor
$36.00
Qty:
(This product has a limit set to 50000 item(s) per order)
Add to Cart Buy Now
Print

Step Accuracy:±5%Resistance Accuracy:±10%
Inductance Accuracy:±20%Temperature Rise:80°C MAX
Ambient Temperature Range: -20°C~ 50°CStorage Temperature Range: -30°C~ 60°C
Insulation Resistance:100M Ω MIN. 500V DCDielectric Strength:500V AC 1min
Radial Play:0.02mm MAX. (450g Load)End Play:0.08mm MAX. (450g Load)
Max. Radial Force:20NMax. Axial Force:2N

NEMA16 Stepper Motor, 1.8° step angle stepper motor

Electrical Specifications:

Mode No.Step
Angle		Motor
Length
mm		Rated
Voltage
v		Rated
Current
A		Phase
Resistance
Ω		Phase
Indutance
Mh		Holding
Torque(MIN)
N.cm		Rotor
Torque
g.cm2		Lead
Wire		Motor
Weight
g
16HS04201.8202.640.46.67.56.5114120
16HS05201.8206.50.5137.58.0116120
16HS06341.8344.550.67.09.318204210
16HS03341.834120.3402013206210
16HS05381.838120.5244529244250
16HS08381.83860.87.5620246250
16HS12441.844120.3408030404260

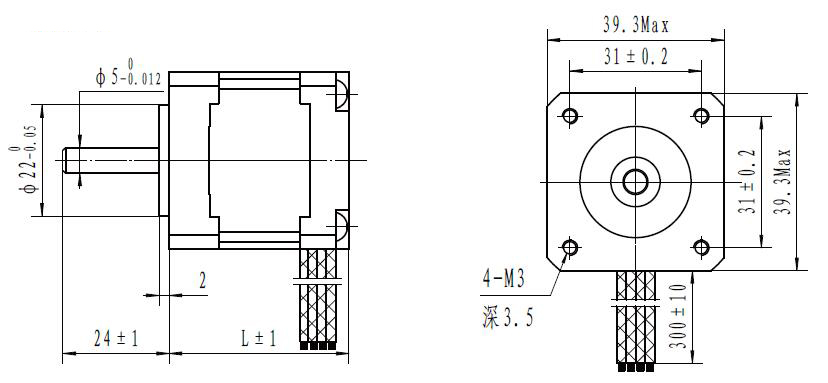

Mechanical Dimensions and Wiring Diagram:

Lead Wire Mode Options:


Shaft Mode can be customized as the requirement.



More Information on detail, please feel free to contact me
