NEMA23 Stepper Lead Screw Linear Actuators

The NEMA 6 is our smallest hybrid linear actuators.

This compact unit can be integrated into various

Applications to provide precise linear positioning while

occupying less than 1 in2 of mounting footprint and
providing up to 44.5N of continuous thrust.

The Working Type for the Different Application Demand:

E: External Linear

N: Non-captive

C: Captive

K: Kaptive

Motor Characteristics:

Motor	Voltage[V]	Current[A]	Resistance[Ω]	Inductance[mH]	Weight[g]	Lead Wire No.	Motor Length[mm]
23-2110	6.4	1	6.4	16.4	585	4	45
23-2120	3.5	2	1.75	4.1	585	4	45
23-2130	2.4	3	0.8	1.7	585	4	45
23-2210	11.5	1	11.5	32	880	4	65
23-2225	5	2.5	2	5.2	880	4	65
23-2240	2.8	4	0.7	2	880	4	65

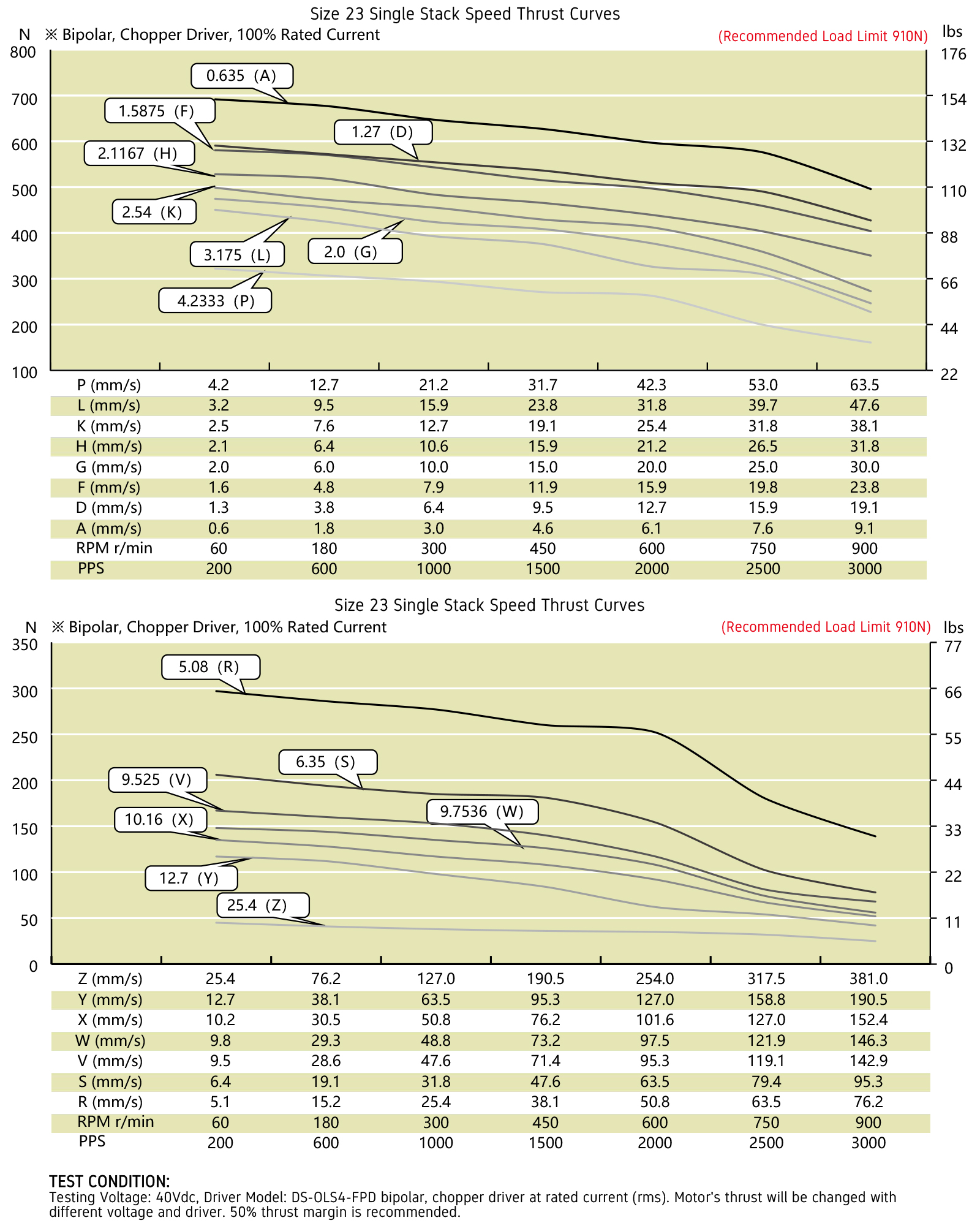

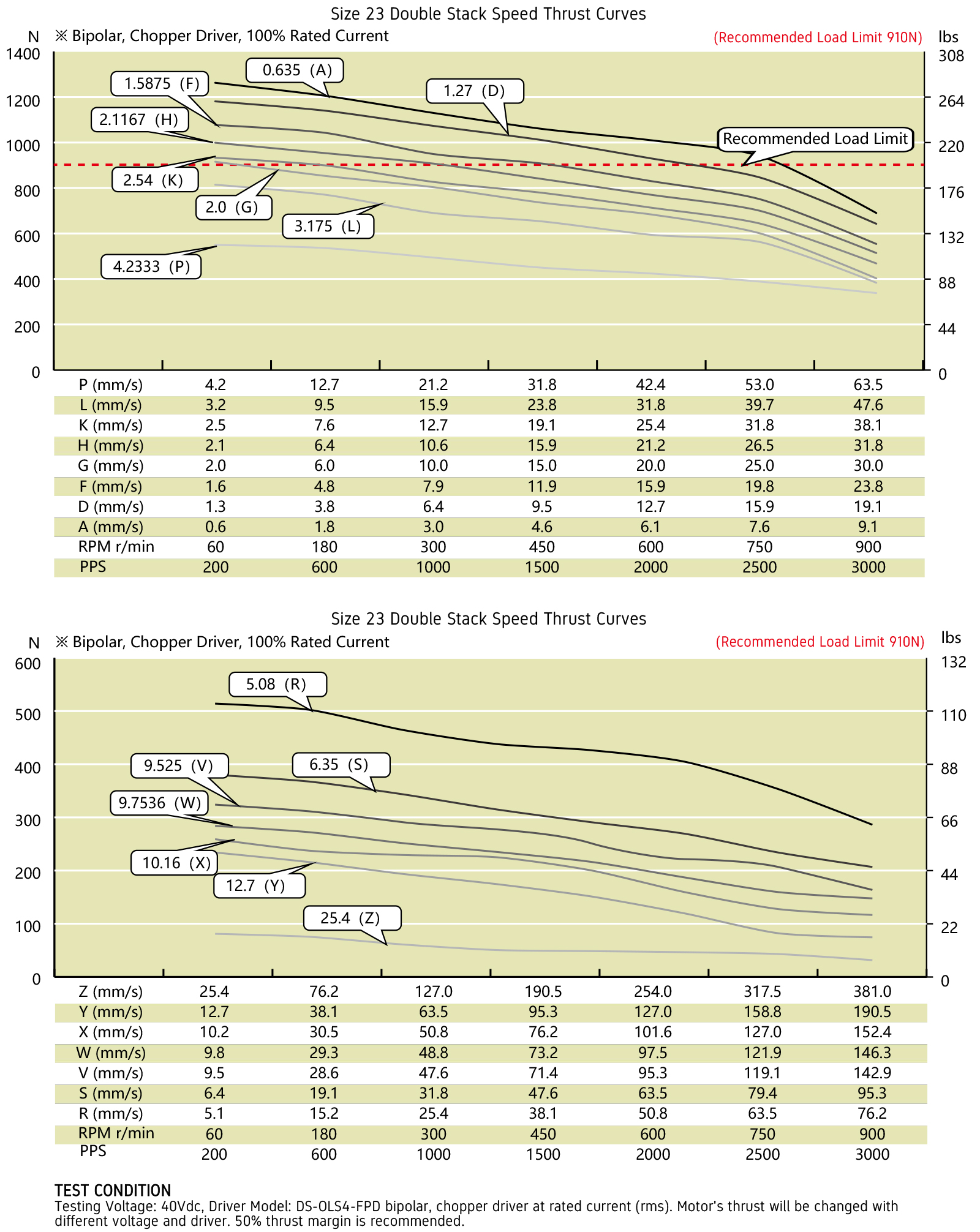

Available Lead Screw and Travel per Step:

Screw Dia.[inch]	Screw Dia.[mm]	Lead[inch]	Lead[mm]	Lead Code	Travel Per Step @ 1.8° [mm]*	Travel Per Step @ 0.9° [mm]*
0.394	10	0.079	2	G	0.01	0.005
0.375	9.525	0.025	0.635	A	0.0032	0.0016
0.375	9.525	0.05	1.27	D	0.0064	0.0032
0.375	9.525	0.0625	1.5875	F	0.0079	0.004
0.375	9.525	0.083	2.1167	H	0.0106	0.0053
0.375	9.525	0.1	2.54	K	0.0127	0.0064
0.375	9.525	0.125	3.175	L	0.0159	0.0079
0.375	9.525	0.167	4.2333	P	0.0212	0.0106
0.375	9.525	0.2	5.08	R	0.0254	0.0127
0.375	9.525	0.25	6.35	S	0.0318	0.0159
0.375	9.525	0.375	9.525	V	0.0476	0.0238
0.375	9.525	0.384	9.7536	W	0.0488	0.0244
0.375	9.525	0.4	10.16	X	0.0508	0.0254
0.375	9.525	0.5	12.7	Y	0.0635	0.0318
0.375	9.525	1	25.4	Z	0.127	0.0635

NEMA 23 Stepper Lead Screw Linear Actuators (External Type):

NEMA 23 Stepper Lead Screw Linear Actuators (Non-Captive Type):

NEMA 23 Stepper Lead Screw Linear Actuators (Captive Type):

Stroke Specification of Captive Actuactor:

A(mm)	Stroke B (mm)	L(mm)
A(mm)	Stroke B (mm)	SingleStack	DoubleStack
45.70	12.70	45	65
52.05	19.05	45	65
58.40	25.40	45	65
64.80	31.80	45	65
71.10	38.10	45	65
83.80	50.80	45	65
96.50	63.50	45	65

NEMA 23 Stepper Lead Screw Linear Actuators (Kaptive Type):

Stroke Specification of Kaptive Actuactor:

Size A (mm)	Stroke B (mm)	C (mm)
Size A (mm)	Stroke B (mm)	Single Stack L=45	Double Stack L=65
24.20	12.70	5.80	0.00
30.55	19.05	12.15	2.15
36.90	25.40	18.50	8.50
43.25	31.75	24.85	14.85
49.60	38.10	31.20	21.20
62.30	50.80	43.90	33.90
75.00	63.50	56.60	46.60
