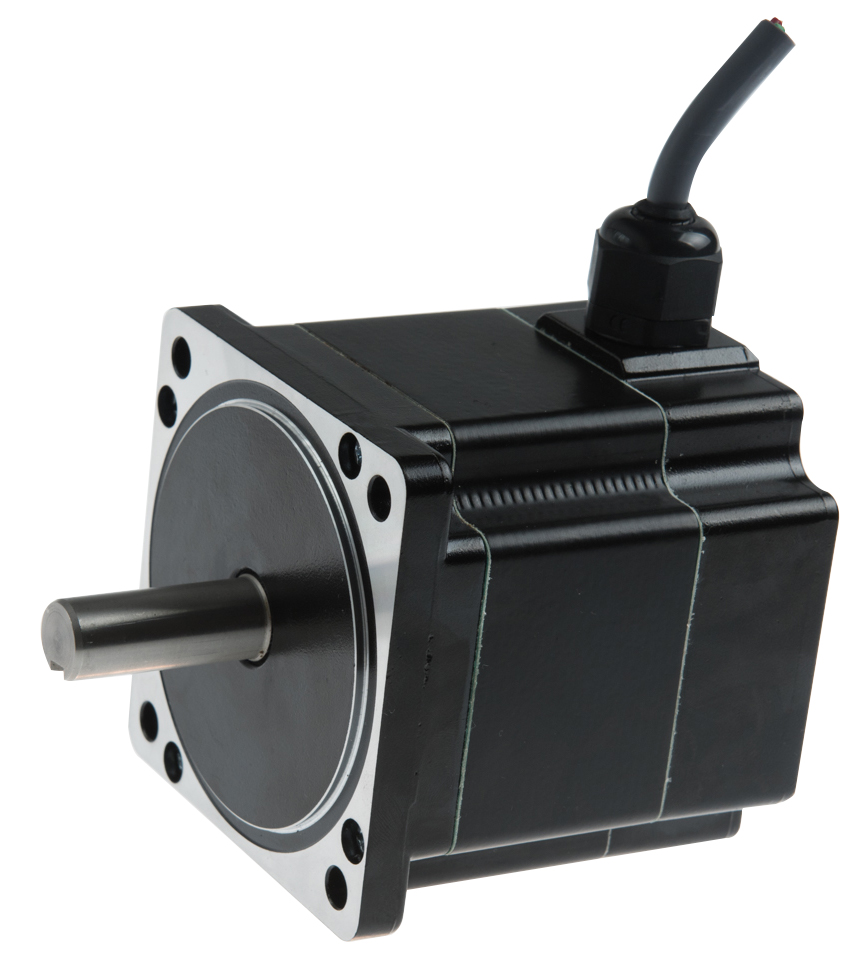

NEMA34 Stepper Motor, IP65 Stepper Motor

IP65 Stepper Motor, waterproof stepper motor
$46.00
*
Qty:
(This product has a limit set to 50000 item(s) per order)

Step Accuracy:±5%Resistance Accuracy:±10%
Inductance Accuracy:±20%Temperature Rise:80°C MAX
Ambient Temperature Range: -20°C~ 50°CStorage Temperature Range: -30°C~ 60°C
Insulation Resistance:100M Ω MIN. 500V DCDielectric Strength:500V AC 1min
Radial Play:0.02mm MAX. (450g Load)End Play:0.08mm MAX. (450g Load)
Max. Radial Force:20NMax. Axial Force:2N

NEMA34 Stepper Motor, IP65 stepper motor

Electrical Specifications:

Mode No.Step
Angle
Motor
Length
mm
Rated
Current
A
Holding
Torque
(MIN)
N.m
Motor
Weight
kg
Shaft
Dia.
mm
34IP290-011.887.83.04.52.114.0
34IP290-021.887.84.54.52.114.0
34IP290-031.887.86.04.52.114.0
34IP2130-011.8126.13.08.53.614.0
34IP2130-021.8126.14.58.53.614.0
34IP2130-031.8126.16.08.53.614.0


Mechanical Dimensions and Wiring Diagram:

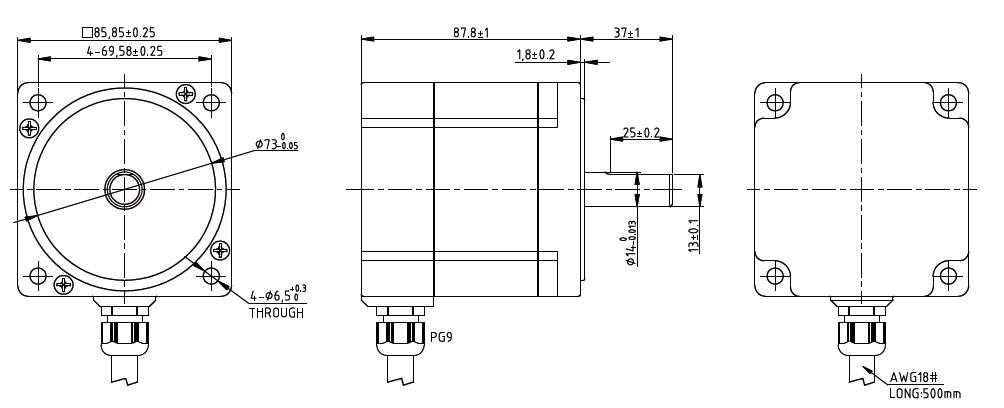

NEMA34 Stepper Motor, IP65 Stepper Motor, 34IP290

DC60V Torque Speed Curve:

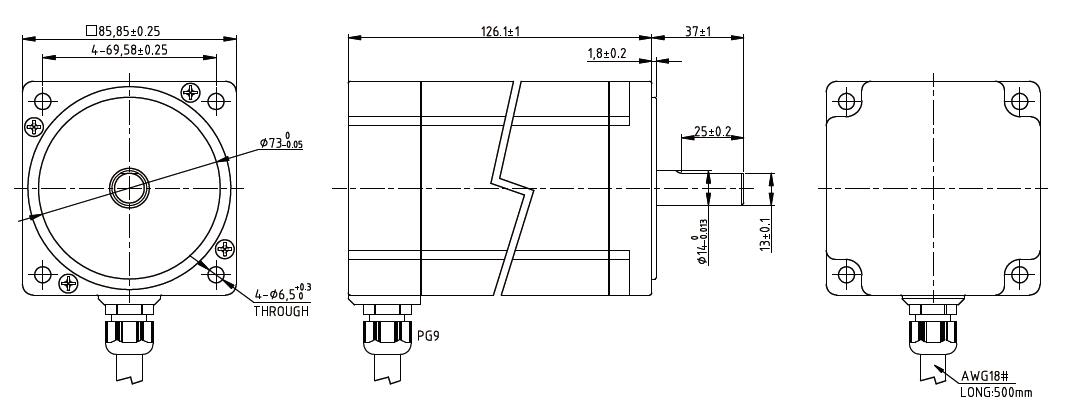

NEMA34 Stepper Motor, IP65 Stepper Motor, 34IP2130

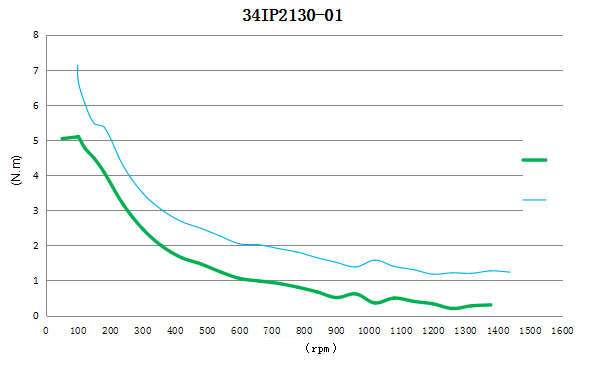

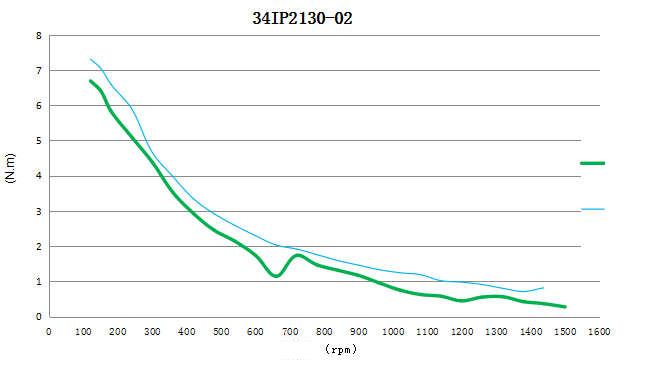

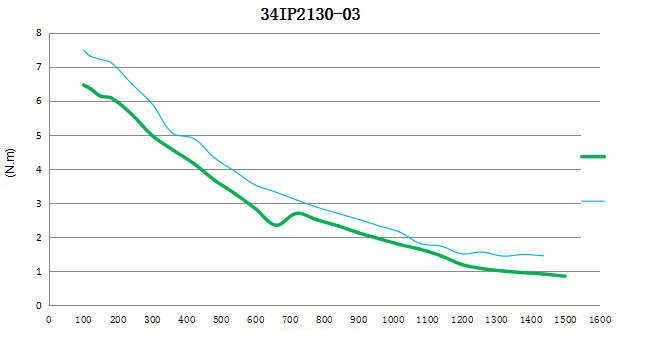

DC60V Torque Speed Curve:




Lead Wire Mode Options:


Shaft Mode can be customized as the requirement.



More Information on detail, please feel free to contact me
