NEMA6 Linear Actuator, 14 mm Linear Actuator

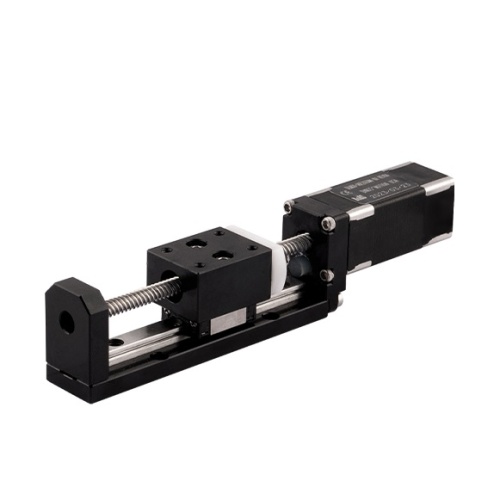

NEMA6 Linear Actuator
$85.00
*
*
*
Qty:
(This product has a limit set to 50000 item(s) per order)
Add to Cart Buy Now
Print


Size:
NEMA6, NEMA8, NEMA11, NEMA14, NEMA17, NEMA23, NEMA23, NEMA34
14mm, 20mm,    28mm,    35mm,    42mm,   57mm,       60mm,    86mm

Stepper
0.001524mm~0.16mm

Performance
Maximum thrust up to 240kg, low temperature rise, low vibration, low noise,
long life (up to 5 million cycles), and high positioning accuracy (up to ±0.005 mm)

Application
Medical diagnostic equipment, life science instruments, robots, optical equipment,
analytical instruments, semiconductor equipment, communication equipment, automation equipment


NEMA6 Lead Screw Linear Actuators
Linear Module, Linear Slider

Motor Type Bipolar stepper
Step Angle 1.8°
Voltage (V) 2.5 / 6.3
Current (A) 0.5
Resistance (Ohms) 5.1 / 12.5
Inductance (mH) 1.5 / 4.5
Lead Wires 4
Motor Length (mm) 30 / 42
Stroke (mm) 30 / 60 / 90
Ambient Temperature -20℃ ~ 50℃
Temperature Rise 80K Max.
Dielectric Strength 1mA Max. @ 500V, 1KHz, 1Sec.
Insulation Resistance 100MΩ Min. @500Vdc


Motor Characteristics:

MotorPhase
voltage
[V]		Phase
Current
[A]		Phase
Resistance
[Ω]		Phase
Inductance
[mH]		Lenght
[mm]		Number
of lead
Wires		Weight
[g]
06326.60.3224.532460

Available Lead Screw and Travel per Step:

Diameter (mm)

Lead (mm)

Step (mm)

3.5

0.3048

0.001524

3.5

0.6096

0.003048

3.5

1

0.005

3.5

1.2192

0.006096

3.5

2

0.01

3.5

4

0.02

3.5

8

0.04

3.5

Customized size

NEMA6 Linear Actuator outline drawing:

Stroke B (mm)20406080100120150Size can be Customized
Dimension A (mm)6080100120140160190

More Information on detail, please feel free to contact me
