NEMA8 Stepper Lead Screw Linear Actuators
Stepper Lead Screw Linear Actuators
$55.00
NEMA8 Stepper Lead Screw Linear Actuators
The NEMA 6 is our smallest hybrid linear actuators.
This compact unit can be integrated into various
Applications to provide precise linear positioning while
occupying less than 1 in2 of mounting footprint and
providing up to 44.5N of continuous thrust.
The Working Type for the Different Application Demand:
E: External Linear
N: Non-captive
C: Captive
K: Kaptive
Motor Characteristics:
Motor Code | Voltage (V) | Current (A) | Resistance (Ω) | Inductance (mH) | Weight (g) | Lead Wire No | Length (mm) |
8-2105 | 2.5 | 0.5 | 5.1 | 1.5 | 51 | 4 | 27.2 |
8-2205 | 4.4 | 0.5 | 8.8 | 2.7 | 74 | 4 | 38.1 |
Available Lead Screw and Travel per Step:
Lead Code | Screw Dia. (inch) | Screw Dia. (mm) | Lead (inch) | Lead (mm) | Travel Per Step @ 1.8 deg (mm) |
AF | 0.138 | 3.5 | 0.012 | 0.3048 | 0.0015 |
AA | 0.138 | 3.5 | 0.024 | 0.6096 | 0.003 |
B | 0.138 | 3.5 | 0.048 | 1.2192 | 0.0061 |
G | 0.138 | 3.5 | 0.079 | 2 | 0.01 |
M | 0.138 | 3.5 | 0.158 | 4 | 0.02 |
T | 0.138 | 3.5 | 0.315 | 8 | 0.04 |
NEMA 8 Stepper Lead Screw Linear Actuators (External Type):
NEMA 8 Stepper Lead Screw Linear Actuators (Non-Captive Type):
NEMA 8 Stepper Lead Screw Linear Actuators (Kaptive Type):
Stroke Specification of Kaptive Actuactor:
A(mm) | Stroke B (mm) | C(mm) | |
L=27.2 | L=38.1 | ||
11.2 | 9 | 1 | 0 |
14.9 | 12.7 | 5 | 0 |
21.1 | 19.05 | 11 | 0 |
27.6 | 25.4 | 17 | 6 |
34 | 31.8 | 24 | 13 |
40.3 | 38.1 | 30 | 19 |

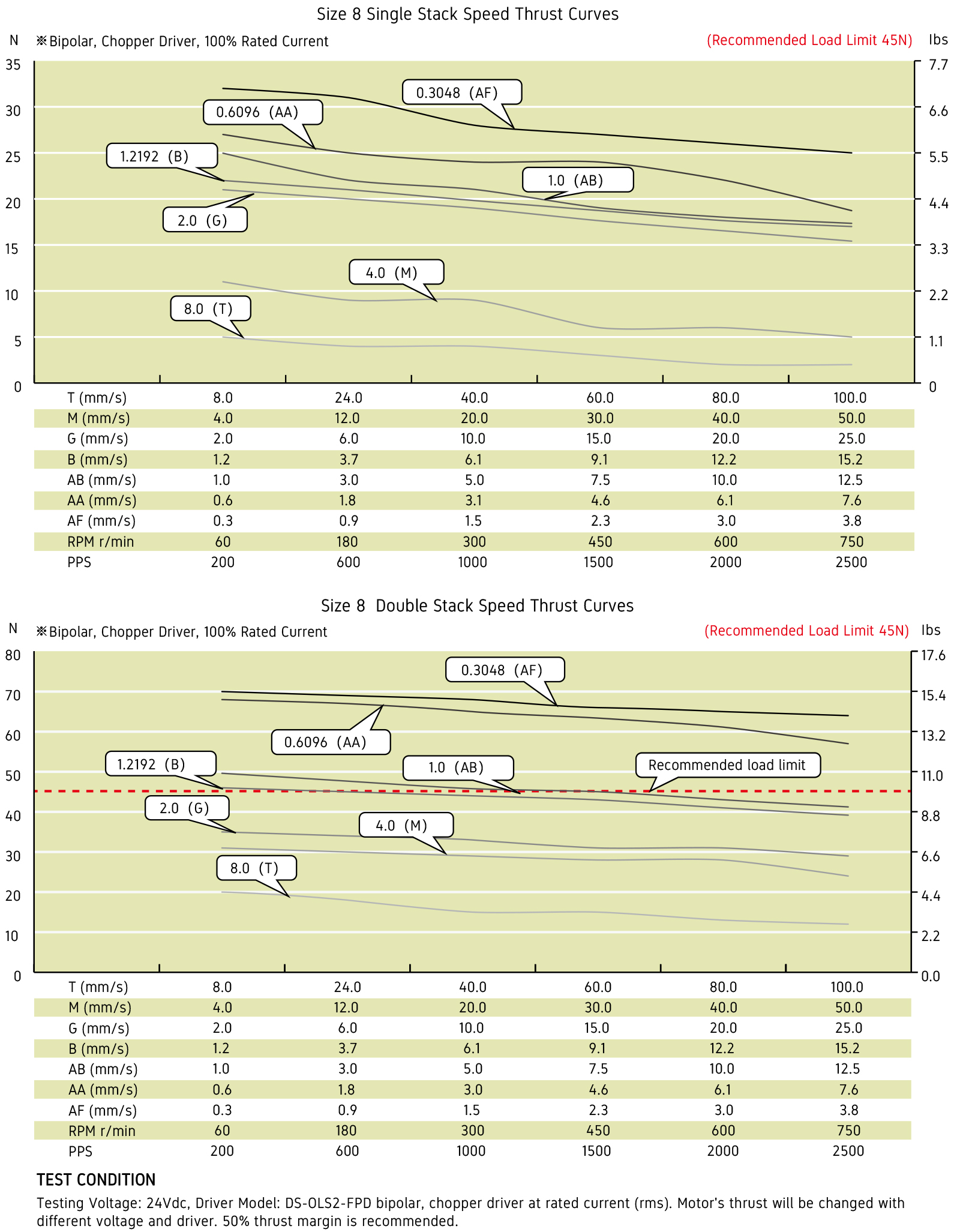

Speed Thrust Curves:
Options for screw end machining:
More Information on detail, please feel free to contact me
- Availability: In Stock
- Model: 8SS
- Brand: Adampower
