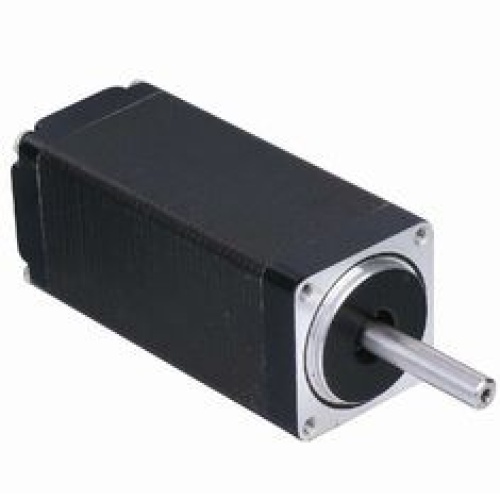

NEMA8 Stepper Motor

2 phase hybrid stepper motor
$35.00
Qty:
(This product has a limit set to 50000 item(s) per order)
Add to Cart Buy Now
Print

Step Accuracy: ±5% Resistance Accuracy: ±10%
Inductance Accuracy: ±20% Temperature Rise: 80°C MAX
Ambient Temperature Range:  -20°C~ 50°C Storage Temperature Range:  -30°C~ 60°C
Insulation Resistance: 100M Ω MIN. 500V DC Dielectric Strength: 500V AC 1min
Radial Play: 0.02mm MAX. (450g Load) End Play: 0.08mm MAX. (450g Load)
Max. Radial Force: 20N Max. Axial Force: 2N

NEMA8 Stepper Motor, 1.8° step angle stepper motor

Electrical Specifications:

Model No.

Step

 Angle

Motor

Length

(mm)

 Rated
 voltage
(v)		 Rated
  Current
(A)		 Phase
Resistance
(Ω)		 Phase
 Indutance
(Mh)		 Holding
Torque(MIN)
N.cm		 Detent
Toruue(MAX)
N.cm

Motor

  Torque

(g.cm2)

 Lead
 Wire  		 Motor
 Weight
(g)
8HS2402 1.8 28 4.6 0.2 23 8.2 1.4 0.2 2.5 4 50
8HS2406 1.8 28 1.92 0.6 3.2 0.9 1.4 0.2 2.5 4 50
8HS3402 1.8 33 5 0.2 25 8.4 1.8 0.3 3.2 4 70
8HS3406 1.8 33 3.9 0.6 6.5 1.7 1.8 0.3 2 4 60
8HS4406 1.8 40 3.48 0.6 5.8 1.6 2.6 0.5 4.5 4 82
8HS4408 1.8 40 4.32 0.8 5.4 1.5 3 0.5 3.6 4 80

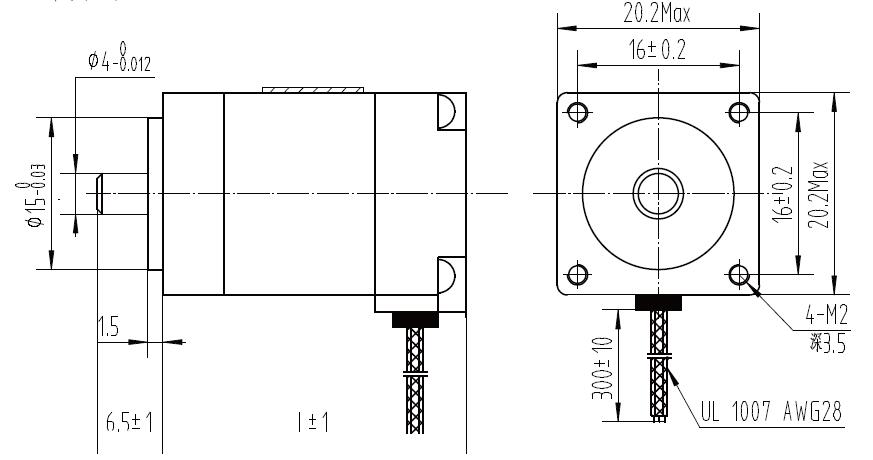

 Mechanical Dimensions and Wiring Diagram:

Lead Wire Mode Options:


Shaft Mode can be customized as the requirement.



More Information on detail, please feel free to contact me
