ADM42S Stepper Motor Controller, RS485 Stepper Motor Controller

$88.00
*
Qty:
(This product has a limit set to 10000 item(s) per order)

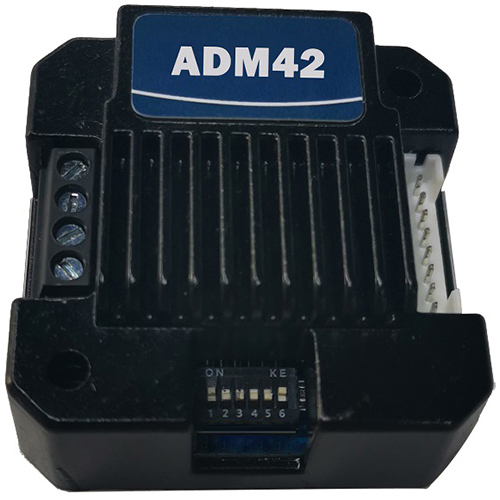

RS485 Serial Stepper Motor Controller, Design for NEMA17 Stepper Motors.

● Miniature size 42.3mmx42.3mm x21mm

● Standard RS485 communication protocol and built-in motion control instructions.

● Multi-axes control, extending up to 32 axes for simultaneous control.

● DC input voltage 12~32VDC, recommended working voltage 24VDC.

● Continuous output current 1.58A max, max peak current 2.2A.

● Integrated design, mounted with 42/39mm stepper motor.

● Low vibration, low noise, stable operation, low motor heating.

● Any micro-step can be set .

● Protection functions such as overvoltage, undervoltage and overcurrent.

● Built-in automatic matching function of motor parameter.

● Serial port RS232/RS485 debugging function.

1.VDC: Positive power input: DC voltage 12-32VDC

2.GND: Negative power input: DC voltage GND

3.COM  IO signal level common anode common terminal, amplitude 5VDC,

4.LIM1- Reverse limit signal port, valid for rising edge

5.LIM2- Reverse limit signal port, valid for rising edge

6.STA: Start and stop signal port, valid on rising edge

7.RSA: RS485 group A signal

8.RSB: RS485 group B signal

Working Principle:

ADM42 Series RS485 Stepper Motor Controller with NEMA17 size plastic flange

When the RS485 Stepper Motor Controller without this  NEMA17 Plastic Flange,

It can be assembled to NEMA17 Stepper Motor directly.

NEMA17 Integrated Stepper Motor, More concise and aesthetically pleasing.

RS485 Stepper Motor Controller, using 6 DIP switch for set the communication baud rate and device ID.

   Device ID

SW1

SW2

SW3

SW4

Broadcast

ON

ON

ON

ON

1

OFF

ON

ON

ON

2

ON

OFF

ON

ON

3

OFF

OFF

ON

ON

4

ON

ON

OFF

ON

5

OFF

ON

OFF

ON

6

ON

OFF

OFF

ON

7

OFF

OFF

OFF

ON

8

ON

ON

ON

OFF

9

OFF

ON

ON

OFF

10

ON

OFF

ON

OFF

11

OFF

OFF

ON

OFF

12

ON

ON

OFF

OFF

13

OFF

ON

OFF

OFF

14

ON

OFF

OFF

OFF

15

OFF

OFF

OFF

OFF

Note: The formula for calculating the ID:  ID=1*SW1 2*SW2 4*SW3 8*SW4.

The default ID value is 0. broadcast mode accept data but not return data.

Communication baud rate setting:

Baud Rate

SW5

SW6

9600

ON

ON

19200

OFF

ON

38400

ON

OFF

57600

OFF

OFF

ADM42S RS485 Serial Stepper Motor Controller Manual

More Information on detail, please feel free to contact me

CRC Check routine by C# :

Uint16 Funct_CRC16(unsigned char * puchMsg, Uint16 DataLen)
{
Uint16 i,j,tmp;
Uint16 crcdata=0xFFFF;
for(i=0;i<DataLen;i )
{

crcdata=(*puchMsg)^crcdata;
puchMsg ;
for(j=0;j<8;j )
{
tmp=crcdata&0x0001;
crcdata=crcdata>>1;
if(tmp){
crcdata=crcdata^0xA001;
}
}
}
returncrcdata;
}

Software Modbus Poll
