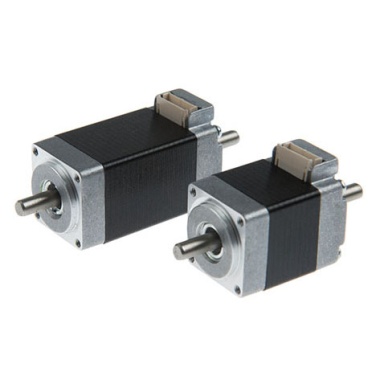

NEMA11 Stepper Motor

2 phase hybrid stepper motor
$36.00
Qty:
(This product has a limit set to 50000 item(s) per order)
Add to Cart Buy Now
Print

Step Accuracy:±5%Resistance Accuracy:±10%
Inductance Accuracy:±20%Temperature Rise:80°C MAX
Ambient Temperature Range: -20°C~ 50°CStorage Temperature Range: -30°C~ 60°C
Insulation Resistance:100M Ω MIN. 500V DCDielectric Strength:500V AC 1min
Radial Play:0.02mm MAX. (450g Load)End Play:0.08mm MAX. (450g Load)
Max. Radial Force:20NMax. Axial Force:2N

NEMA11 Stepper Motor, 1.8° step angle stepper motor

Electrical Specifications:

Model No.Step AngleMotor
Length
mm		Rated
Voltage
v		Rated
Current
A		Phas
Resistance
Ω		Phase
Indutance
Mh		Holding
Torque
N.cm		Detent
Toruue
(MAX)
N.cm		Torque
g.cm2		lead
Wire		Weight
g
11HS24031.8284.20.35125.84.50.364105
11HS24061.8282.520.64.22.24.50.364105
11HS34061.8333.80.675.63.460.494110
11HS36091.8332.660.952.80.84.30.496110
11HS44031.84170.35201560.5114140
11HS44061.8414.20.67660.5114140
11HS54031.8508.40.352418.5100.8134180
11HS54061.8506.20.679.27.2120.8184200
11HS56091.8504.40.954.61.890.8186200

Mechanical Dimensions and Wiring Diagram:

Lead Wire Mode Options:


Shaft Mode can be customized as the requirement.



More Information on detail, please feel free to contact me
