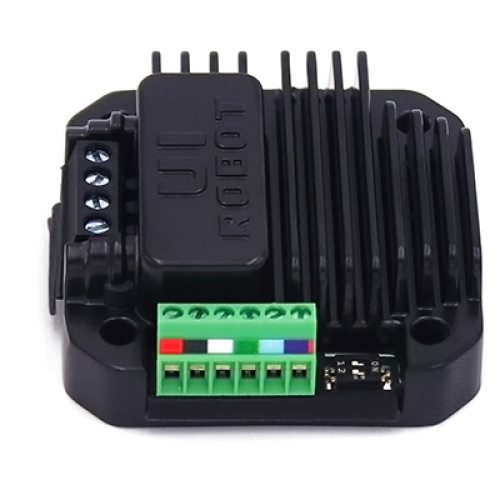

UIM240 series Stepper Motor Driver, Pulse & Direction Stepper Motor Driver

UIM240 SERIES MINIATURE INTERGRATED STEPPER MOTOR DRIVER

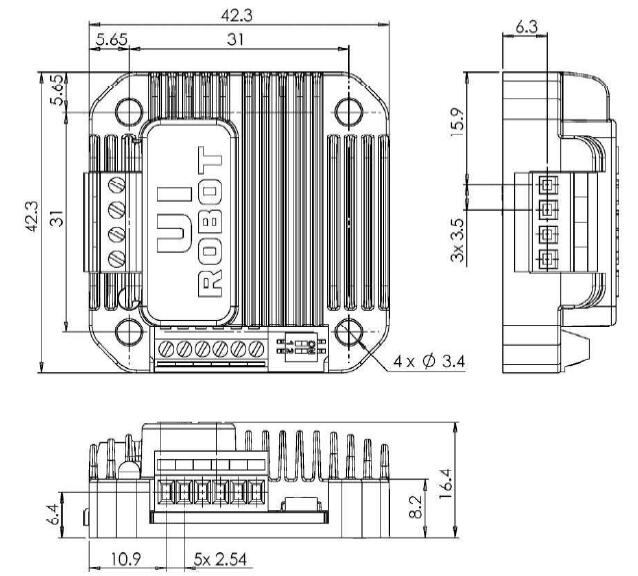

● Miniature size 42.3mmx42.3mm x14.5mm
● Integral design to fit motors, work standalone as well
● Wide range input voltage 10-40VDC
● 0-2A/ 1.5-4A/ 3-8A adjustable phase current
● 1 to 16th micro stepping
● Automatic Current Reduction
● Dual full H-bridge with PWM constant current control
● enable/shutdown input for power saving
● Optical-isolated inputs
● die-cast aluminum enclosure improved heat dissipation and durability

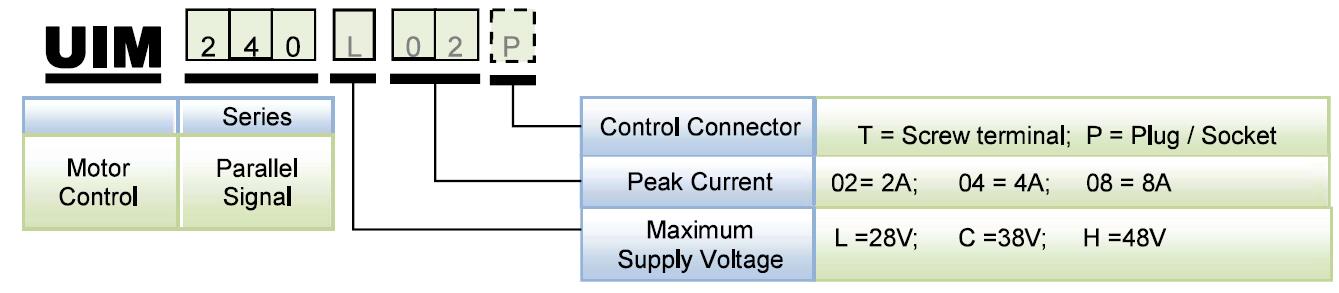

Pulse & Direction Type Stepper Driver Model Number Confirmation

Correspondence between Max. Supply Voltage and Peak Current

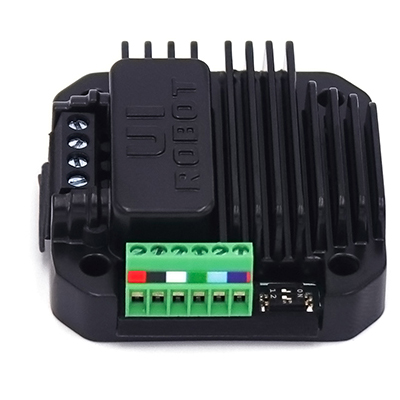

Connector Type: P, T

T:  Screw Terminal

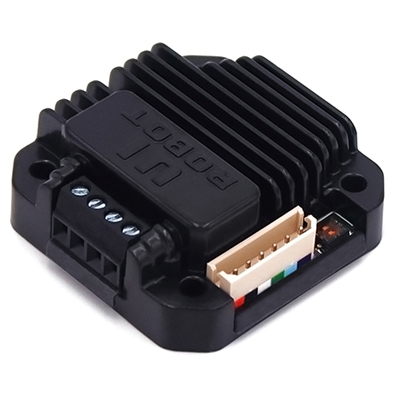

P: P lug Socket (including cables)

Model No. Example: UIM240L02T ;  UIM240C04P; UIM240C08P

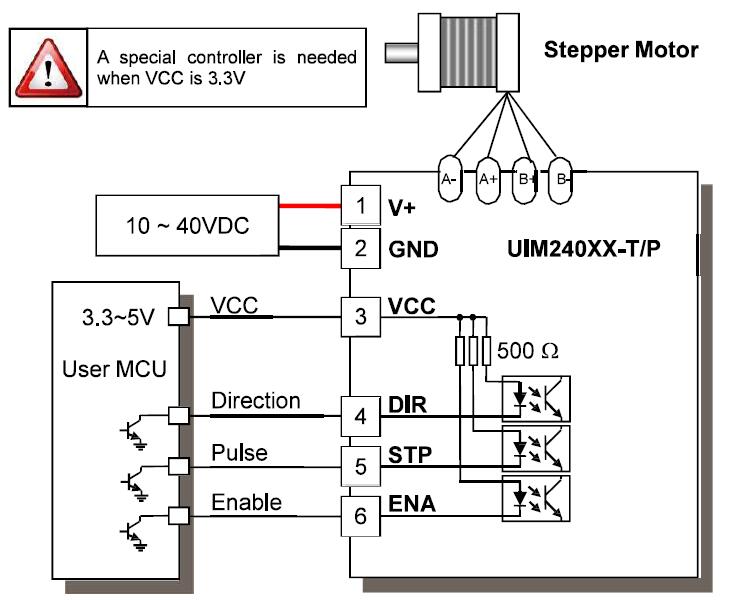

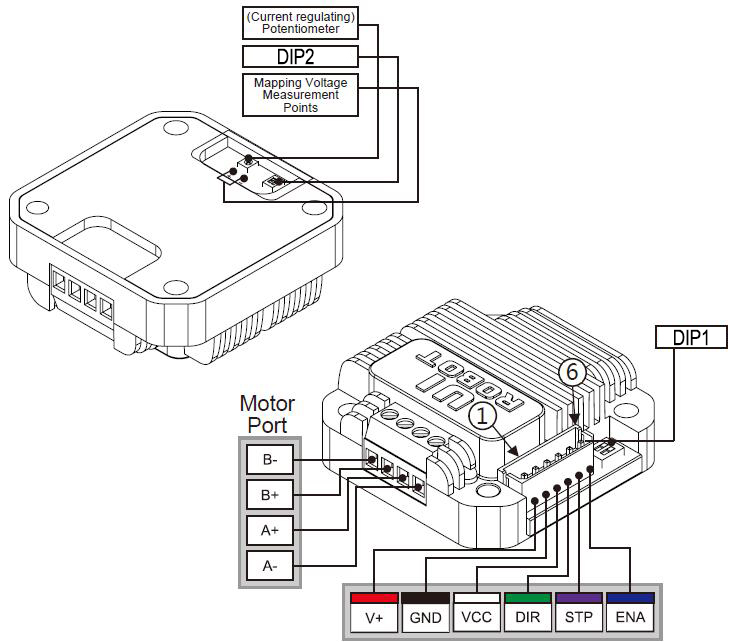

Typical application of UIM240 stepper motor driver.

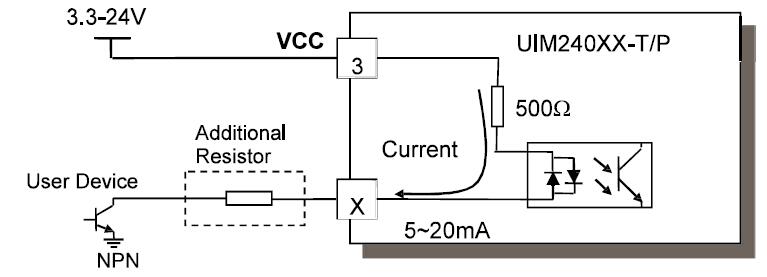

Optically isolated common anode input interface.

Reference Value of the Additional resistor:

Current Adjusting & Micro Step Setting

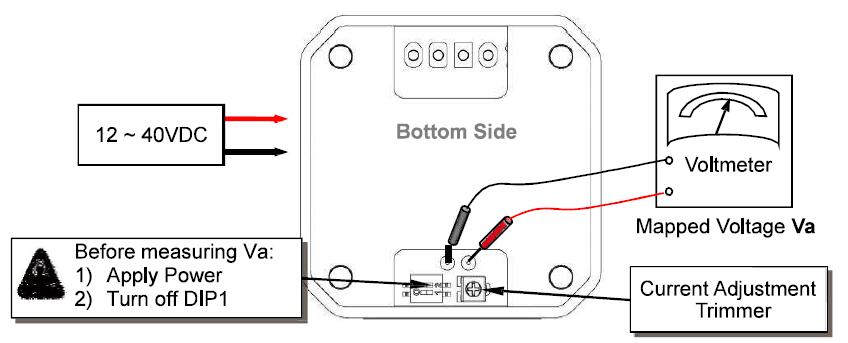

1. Adjusting the output current, Default current:  L02: 1.7A; C04:2.8A, C08:5A

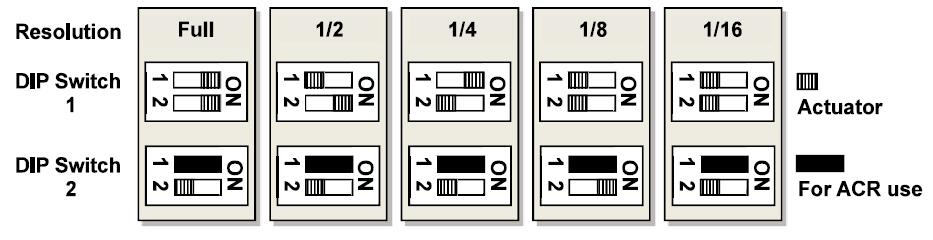

2. Micro-Step Setting, Default 1/16Micro-Step

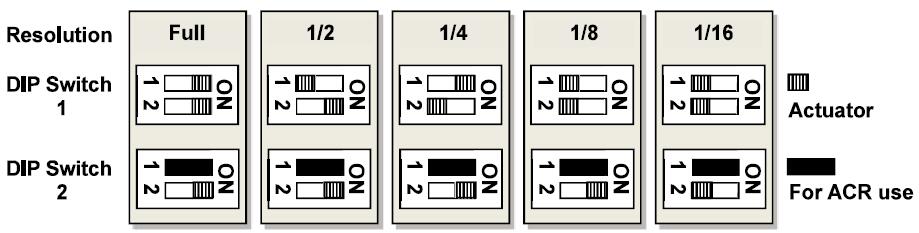

UIM240L02 series Micro-Step setting

UIM240C04, UIM240C08 series Micro-Step setting


Video guidance for UIM240 Series Pulse & Direction Stepper Driver

Mnaual
