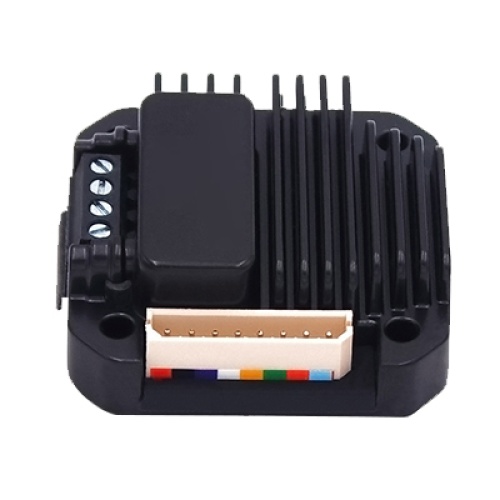

UIM243B series Voltage Control Type Stepper Motor Controller

Voltage Control Type Stepper Motor Controller Model Number Confirmation

Correspondence between Max. Supply Voltage and Peak Current

Connector Type: P or T

P: P lug Socket (including cables)

T:  Screw Terminal

Model No. Example: UIM243L02BT ;  UIM243C04BP; UIM243C08BT.

Stepper Motor Controller Features
− 10 - 38VDC *input voltage, Max 2A ~ 4A adjustable phase current
− 16th micro-stepping
− Dual full H-bridge with PWM constant current control
− UIM243L02: 10 - 28VDC，UIM243C04: 10 – 38VDC

UIM243XXB Wiring Terminal

For users want to use an external voltage to control the speed to facilitate the needs such
as microprocessor D/A control, UIM24302B provides a speed control voltage input port.
The external control voltage must share the common ground with the UIM24302B controller.

UIM243XXB With External Control Voltage.

The external control range must between -0.3V and 5.3V.

UIM243 series stepper motor controller setup Phase Current

UIM243L02: A mapped voltage “Va” of 0 - 4V proportionally represents 0 ~ 2A.
UIM243C04: A mapped voltage “Va” of 0 - 4V proportionally represents 0 ~ 4A.
UIM243XXA, adjusting the onboard trimmer will give the desired motor speed,
The working Speed Range High/Low can be customized as requirement.

UIM243 series stepper motor controller setup working speed range.


High Speed Range:

Low Speed Range:

Note: Only UIM243L02 series support change working speed range via Jumpers.

Video guidance for UIM243 Series Stepper Motor Controller
